Insight. Encouraged.

uCT 520 is designed to bring customers greater access to advanced technologies. The system also shows excellent financial performance with reliable components and multiple integrated advanced applications.

Intelligent and automated operations for personalized care

Workflow with Ease

Comprehensive dose control technologies to deliver optimized dose plans

Imaging with Care

Reducing total cost of ownership for operation

Outstanding Financial Performance

Insight. Encouraged.

Innovative Z-Detector

Innovative Z-Detector
High Quality Material

Gadolinium oxysulfide (GOS) scintillator provides a fast and high conversion efficiency of X-rays.

Ultra-low Noise Design

The Z-Detector with highly integrated technology, significantly reduces noise to provide low dose, high quality images.

Fine Sampling

The refined voxel size realizes the exquisite visualization of anatomical details.

AI Empowered Workflow

Efficient Workflow

Efficient Workflow

EasyScan: Intelligently plans the exam for individual patients.
EasyLogic: Minimizes the waiting time between operation procedures and accelerates CT exam workflow significantly.

High Performance Post-Processing

High Performance Post-Processing

The uCT 520 provides advanced post-processing applications for improved diagnostic confidence.

Exquisite Images

Real 3D Cone Beam Reconstruction

Real 3D Cone Beam Reconstruction

The Real 3D cone beam reconstruction algorithm enables high resolution 3D isotropic images.

KARL 3D Iterative Denosing

KARL 3D Iterative Denosing

The state-of-the-art algorithm is performed in both the projection and image spaces to provide low dose, high quality images.

Imaging with Care

uDose 3D Dose Modulation

uDose 3D Dose Modulation

UDose generates an optimized 3D dose distribution plan for every individual scan according to anatomical information.

70kV Scan Mode

70kV Scan Mode

70kV scan mode can increase signal-to-noise ratio (SNR) to be especially beneficial for pediatric patients, contrast imaging and CT Venography (CTV) imaging.

Outstanding Total Cost of Ownership

Outstanding Total Cost of Ownership
Reliable Components

Lightweight CT tube designed for easy serviceability.
Self-cleaning carbon brushes for high slip-ring reliability.

Gantry Tilt

Up to ± 30˚ physical gantry tilt is available with uCT 520.

Easy-Logic Intelligent Prediction Platform

The system predicts the next user operation and automatically arranges for scanning.

Green Mode

uECO mode saves 30% of power consumption compared to conventional standby modes.

Outstanding Total Cost of Ownership

Clinical Application

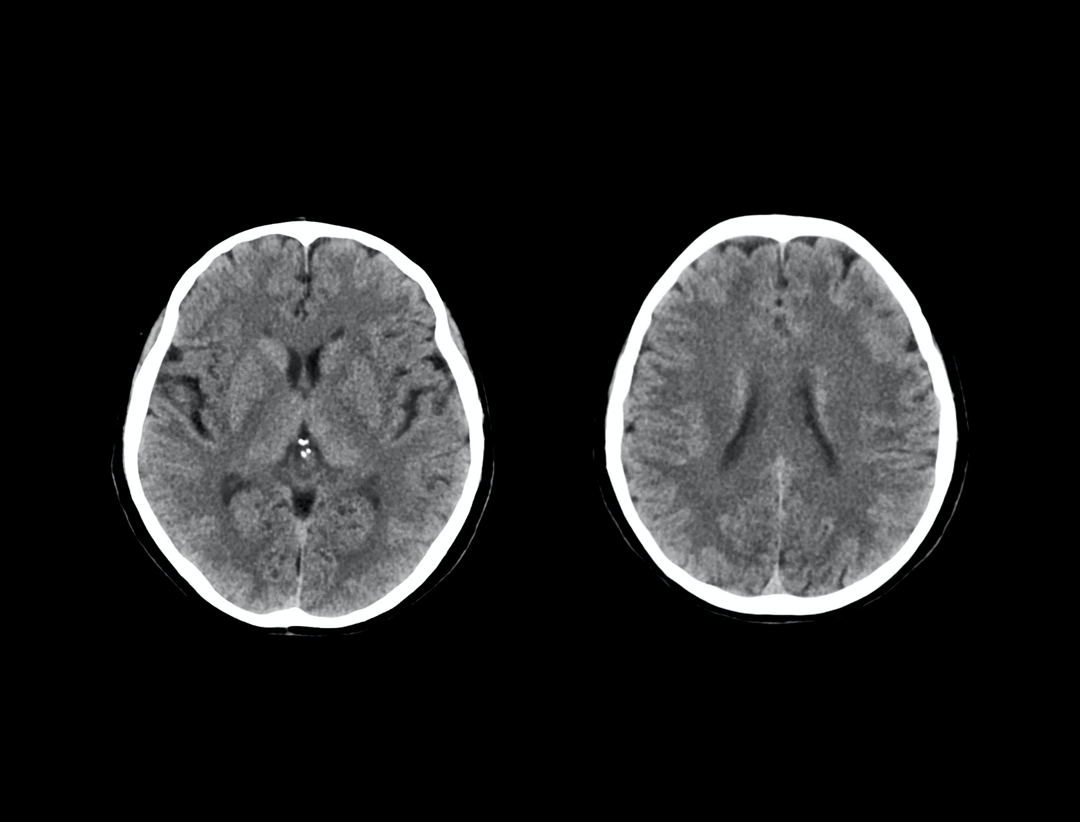

Non-contrast Head Scan
Non-contrast Head Scan

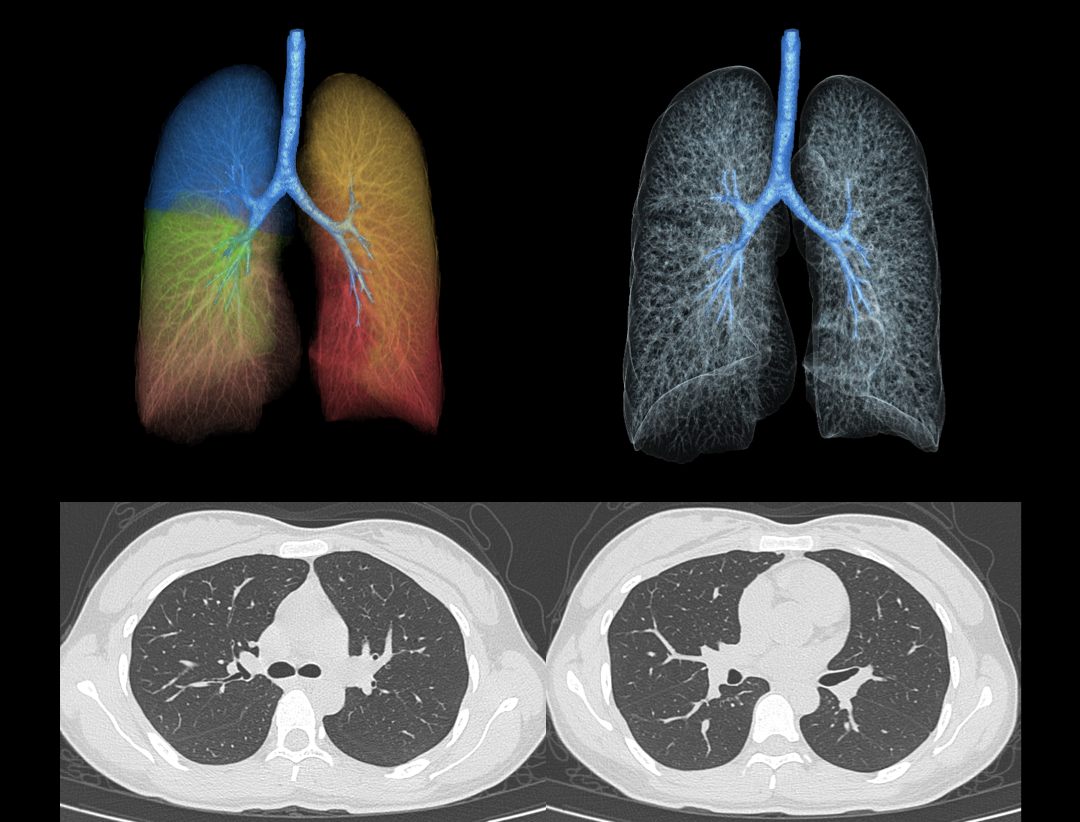

Non-contrast Chest Scan
Non-contrast Chest Scan

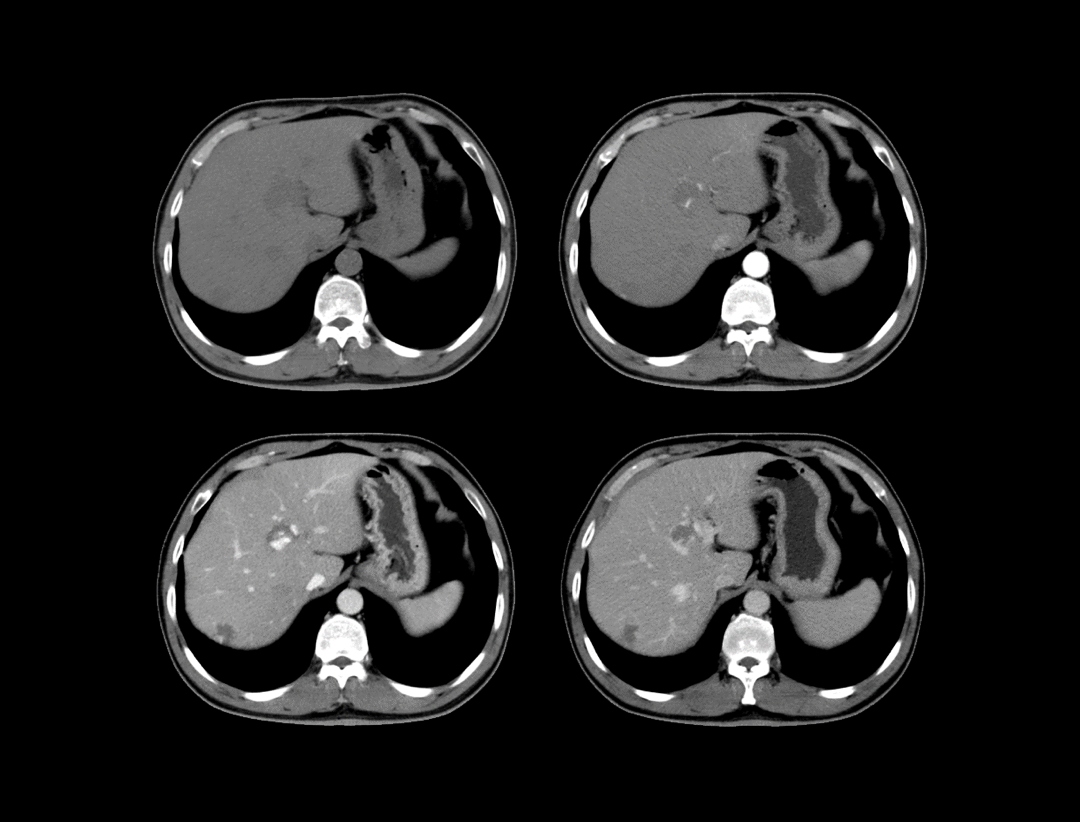

Contrast Enhanced Abdomen Scan
Contrast Enhanced Abdomen Scan

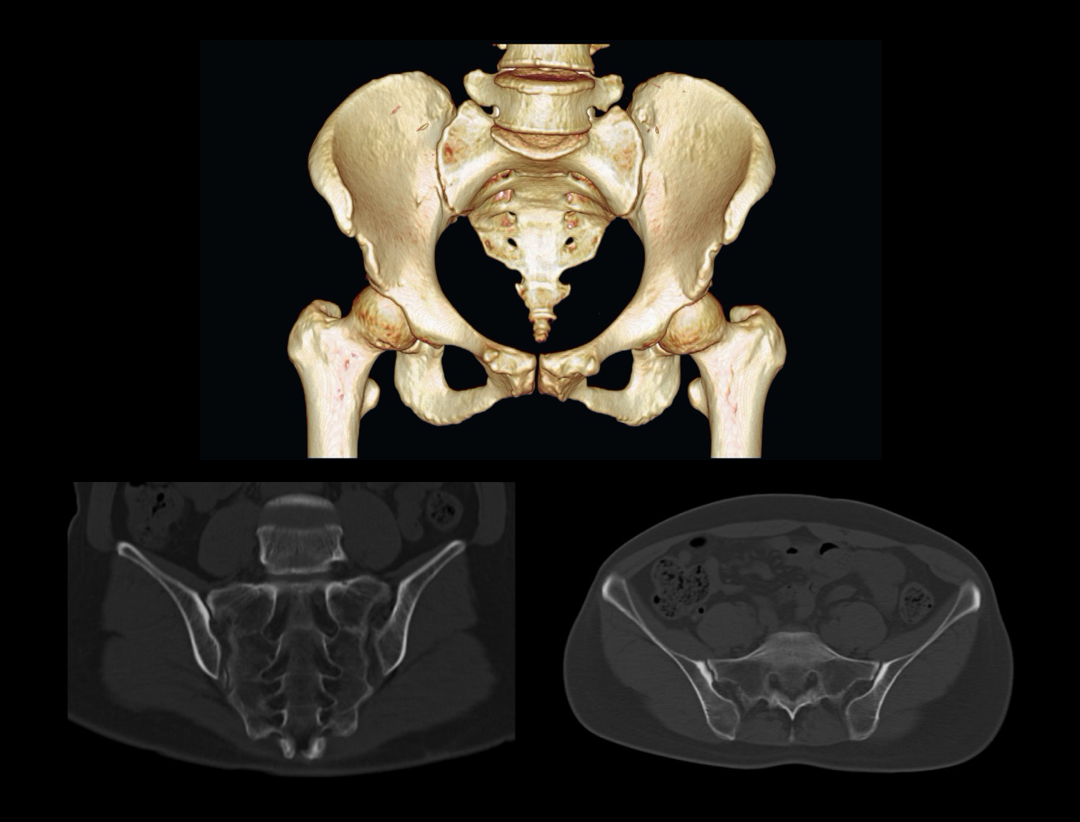

Sacroiliac Joint Scan
Sacroiliac Joint Scan

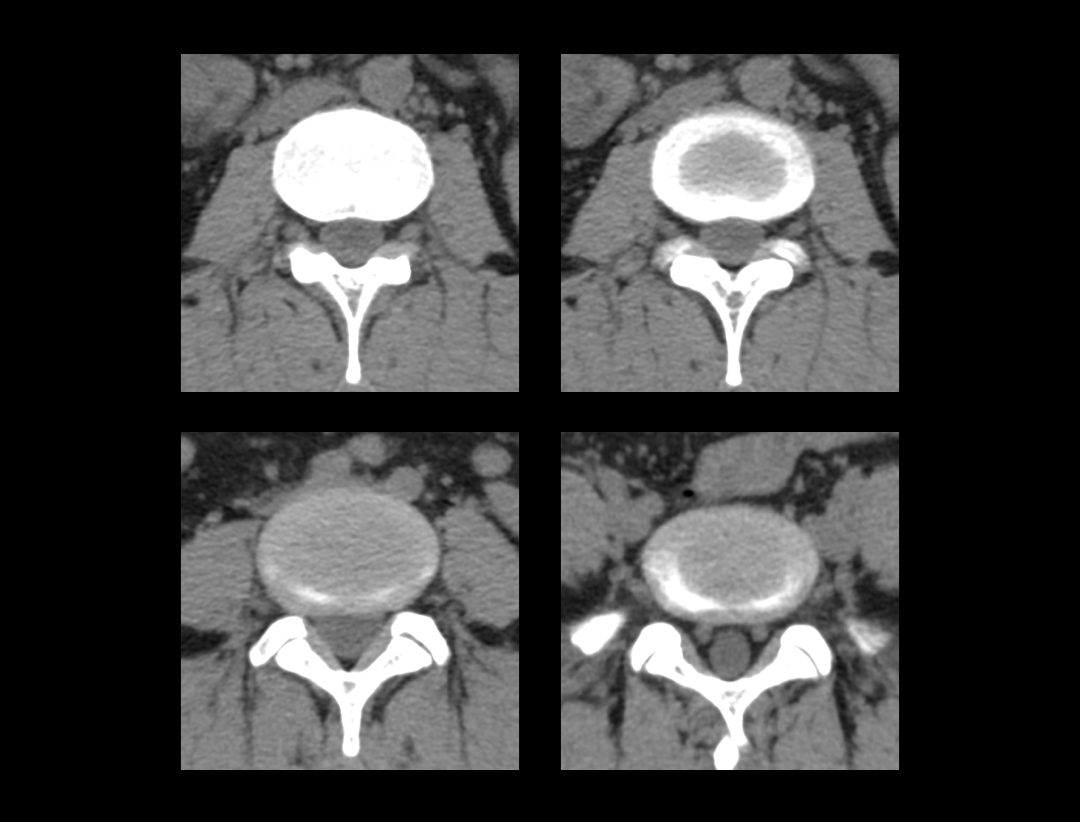

L-spine Scan
L-spine Scan

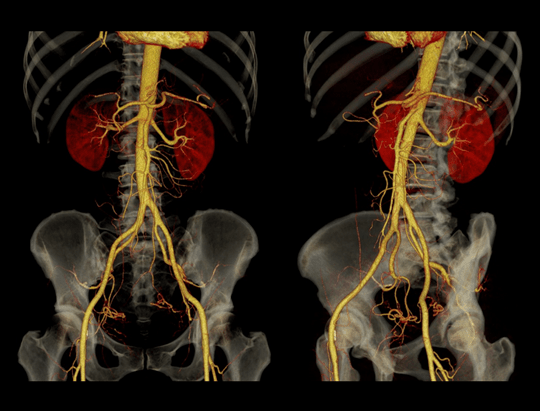

Aorta CTA
Aorta CTA
Technical Details

Tube anode storage capacity

2 MHU

Detector

Z-Detector

Number of detector rows

40

Max. slices generated per rotation

80*

Rotation time

0.75 s/360°

kV settings

70,80,100,120,140 kV

Generator power

42 kW

Aperture

70 cm

Table load

205 kg

*optional
Disclaimer:
uCT 520 is designed in compliance with Regulation (EU) 2017/745 and manufactured in accordance with ISO 13485, ensuring adherence to all applicable medical device safety standards, including EN 60601-1, EN 60601-2-44, EN 60601-1-2, EN 60601-1-3, and etc.
This product is intended for use by trained medical professionals only. Patients should follow the guidance and instructions provided by healthcare practitioners during operation.
The supported languages of instruction for use include: English, French, Spanish, et al. Qualified users may access the instruction for use in the appropriate language via the provided link:
https://uicloud.com/uclass/docs/en-us/home
Please contact your local United Imaging Healthcare organization for further details.
