AI for Efficiency, AI for Confidence

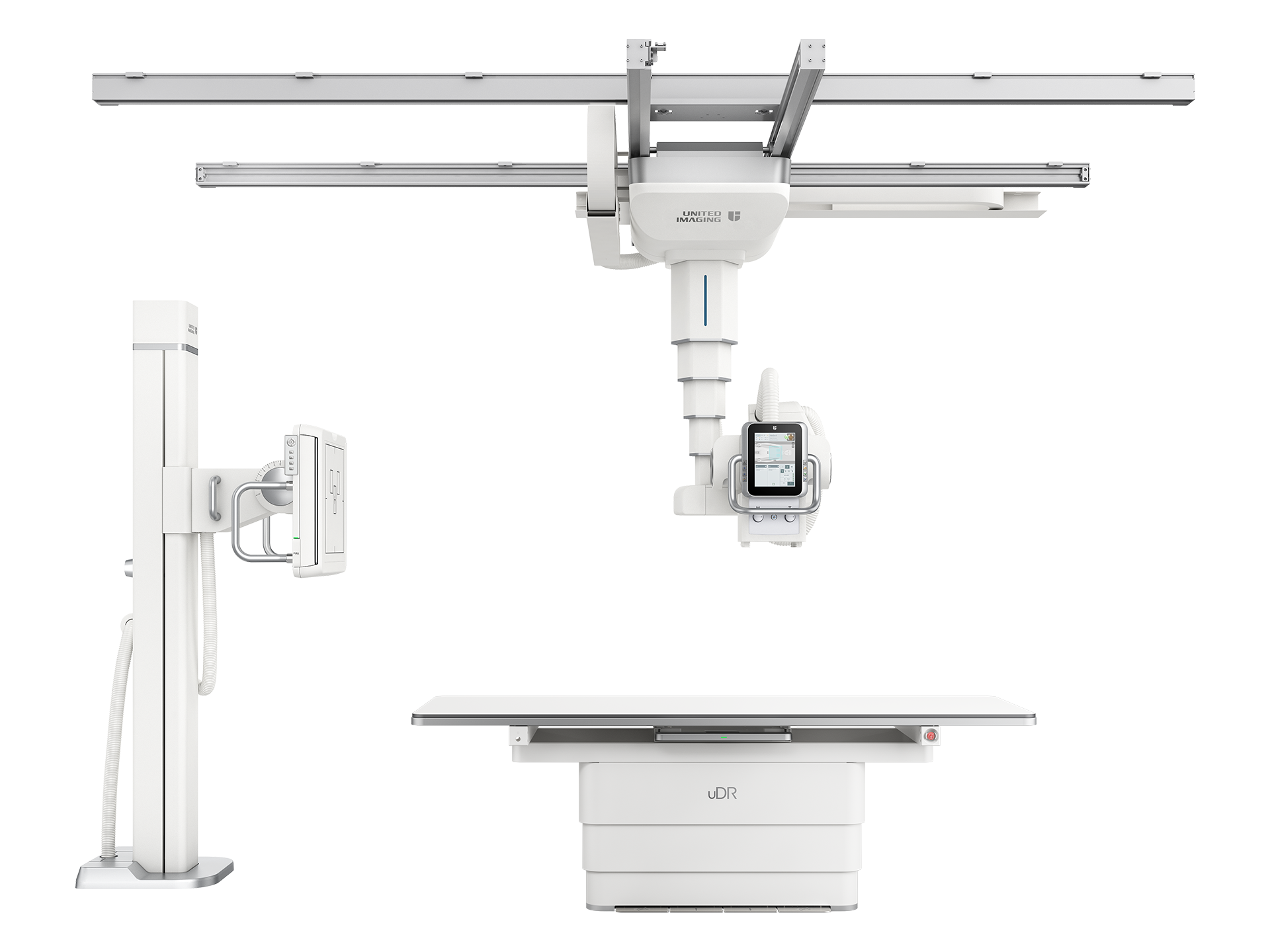

uDR® Aurora CX is United Imaging's AI-powered, ceiling-mounted X-ray system built to redefine efficiency and confidence in radiography. Equipped with the uAI® Vision Camera*, it creates a precise 3D model of the patient, enabling intelligent, automated adjustments to positioning and exposure parameters for a seamless workflow. With AI quality assurance technology embedded throughout the entire imaging process, it delivers real-time and retrospective analysis to eliminate repeat exposures and unnecessary patient radiation dose.

AI-enabled Clinical Workflow automates positioning, collimation, and exposure settings, allowing technologists to capture precise images faster and with greater confidence.

AI-Enabled Clinical Workflow

AI-enabled Quality Assurance integrates intelligent positioning and real-time image QC, reducing retakes and unnecessary radiation dose while ensuring consistent, high-quality results.

AI-Enabled Quality Assurance

Featuring All-in-one free exposure, and smart stitching solutions, it addresses real clinical challenges to make every examination easier and reliable.

AI-Enabled Smart Examinations

*uAI Vision Camera is a commercial name of uVision feature.

Technical Details
  • Detector
  • X-ray Tube
  • HV Generator

Detector



Detector type

Wireless Flat Panel Detector

Scintillator

Cesium Iodide (CSI)

Pixel Size

100μm

Detector Size

17"X17"/14"X17"

X-ray Tube



Tube type

Rotating Anode X-ray Tube

Anode target material

Rhenium-Tungsten faced Molybdenum

Focal spot size

0.6mm / 1.2mm

Anode target angle

12°

HV Generator



Max. Output Power

65kW / 80kW

Range of kV

40kV-150kV

Range of mA

10~800mA (65kW)
10~1000mA (80kW)
