Advancing Whole-Body Imaging

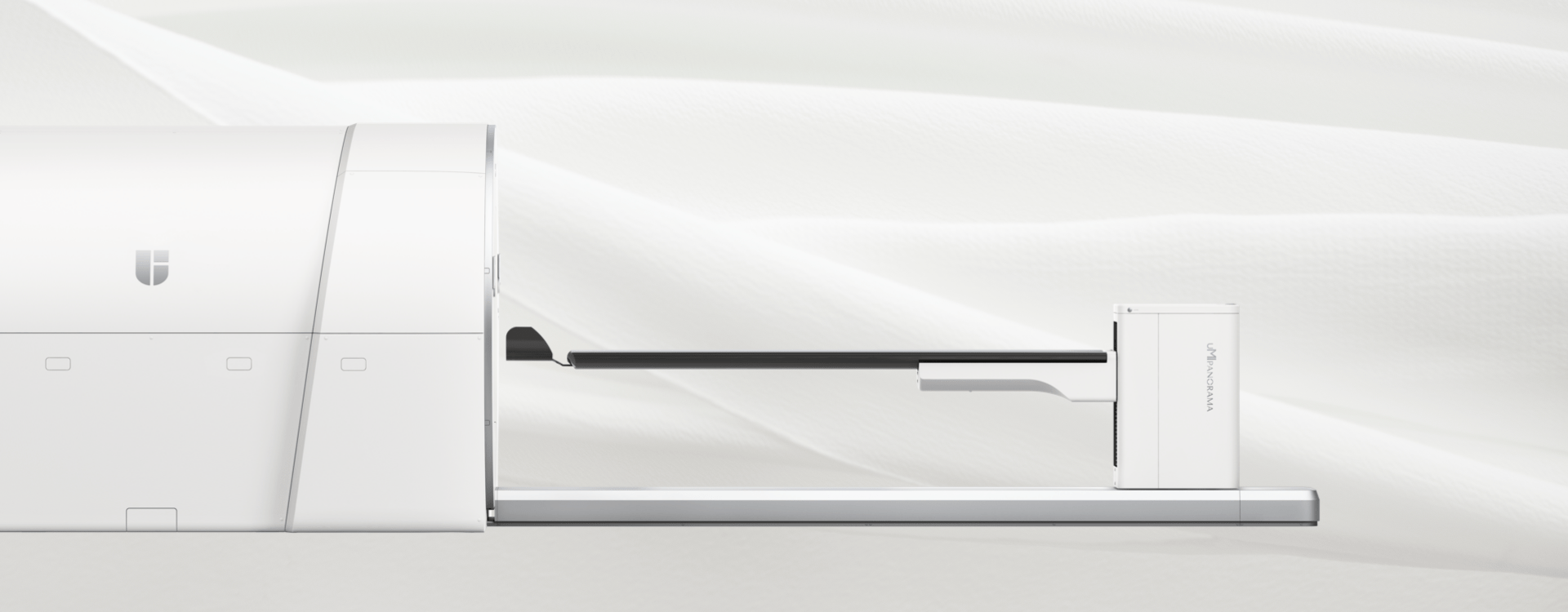

uMI Panorama GS is an advanced PET/CT solution for whole-body imaging, featuring state-of-the-art uExcel technology. It is the first whole-body system to break the 200 ps timing barrier and boasts an impressive 148 cm axial field of view (FOV).* This system delivers exceptional capabilities for both functional and anatomical imaging, expanding possibilities for both clinical practice and research.


* Data on File.

uMI Panorama GS is a whole-body PET/CT system equipped with the next-generation Ultra Digital Platform (UDP) detector, uExcel UDP, which enables record-breaking time-of-flight (TOF) performance, exceptional spatial resolution, and remarkable system sensitivity.

Unlocking Precision without Compromise

The remarkable 148 cm axial field of view (FOV) of this system allows for a broader high-sensitivity region within the axial FOV, supporting super-high resolution whole-body imaging. The innovative uExcel technology platform empowers uMI Panorama GS with an intelligent and user-friendly workflow.

Expanding Whole-Body Imaging with 148 cm AFOV

The comprehensive high-performance system of uMI Panorama GS can facilitate advancements in clinical practice and research across various PET/CT fields.

Enabling a Panoramic View for New Clinical and Research Dimensions

Meet uMI Panorama GS

148 cm Axial FOV

411,264 crystals and patented multi-unit design realize the whole-body coverage

2.9 mm NEMA Resolution

The finest PET/CT crystal in the industry enables the highest spatial resolution, yielding a clearer imaging result

199 ps Timing Resolution

The first whole-body PET/CT system with timing resolution (TOF) that breaks 200 ps

176 cps/kBq Sensitivity

Incredible 176 cps/kBq NEMA NU 2-2018 sensitivity for superior imaging

*Measured with a 70 cm NEMA NU-2 phantom

148 cm Single-Bed Coverage

According to data on human height*, the median male height is 178.4 cm, and the median female height is 164.7 cm. uMI Panorama GS offers a long axial field of view measuring 148 cm, enabling a single-bed scan to have the vertex to mid-thigh region fall within the high sensitivity range of the system for almost all individuals, ensuring high-resolution whole-body PET/CT.

*Data Source：https://ourworldindata.org/human-height
**Image courtesy of Sun Yat-sen University Cancer Center, GD, CHN

Features & Benefits

uExcel UDP

The uExcel UDP PET detector utilizes in-house made 2.76 mm LYSO crystals, delivering an exceptional NEMA spatial resolution of 2.9 mm. With 100% SiPM coverage, it optimizes photon reception efficiency. The exclusive ASIC chip increases readout channels while reducing power consumption, enabling an impressive time resolution of 199 ps.

High System Sensitivity

uMI Panorama GS, with its 148 cm axial field of view, represents a significant advancement in medical imaging technology. The extended field of view enables the scanner to capture a broader range of γ photon pairs, thereby enhancing signal acquisition across adjacent units. Powered by this, uMI Panorama GS can carry out high-quality low-dose, ultra-fast, and long delay imaging.

Integrated Clinical Scanning Routine with AI

uExcel uVision introduces an innovative AI-empowered approach for precise positioning and scan planning using a 3D camera. One incorporated feature, EasyRange, allows users to define customized and adaptable scanning ranges for reconstruction, which further enhances the automation and flexibility of clinical workflow.

Fast Reconstruction

uMI Panorama GS incorporates cutting-edge computing machines, leveraging sophisticated technology and an advanced architecture for data processing. This intricate data-processing system facilitates the real-time reconstruction of high-quality images, ensuring a seamless and swift process during data acquisition.

Fits in a Standard PET/CT Room

uMI Panorama GS is a LAFOV system that fits within the footprint of a standard field of view PET/CT such as the uMI Panorama 35. This next-generation system can fit into facilities with legacy floorplans, offering a LAFOV solution without the need of substantial space adjustments.

Focus on Patient Experiences

76 cm PET Bore

Improving patient comfort.

Tunnel Light

Relaxing patient experience.

In-bore Intercoms

Clear patient communication.

Tunnel Camera*

Real-time, online monitoring for patient safety.

*For privacy, monitoring video is not stored.

Clinical Gallery

AI-based Automatic Partial Axial FOV Scan Range Planning

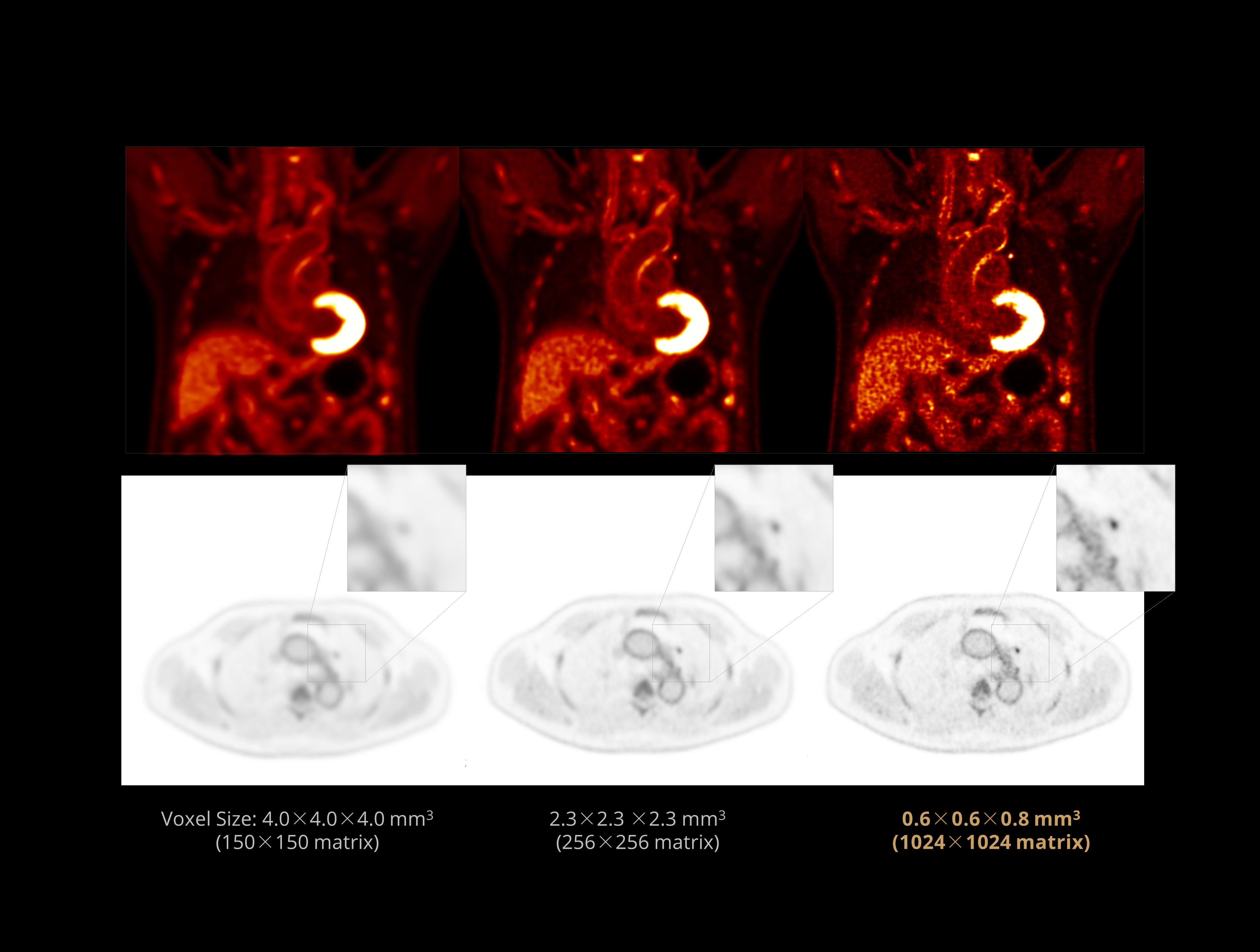

Large Matrix: up to 1024×1024

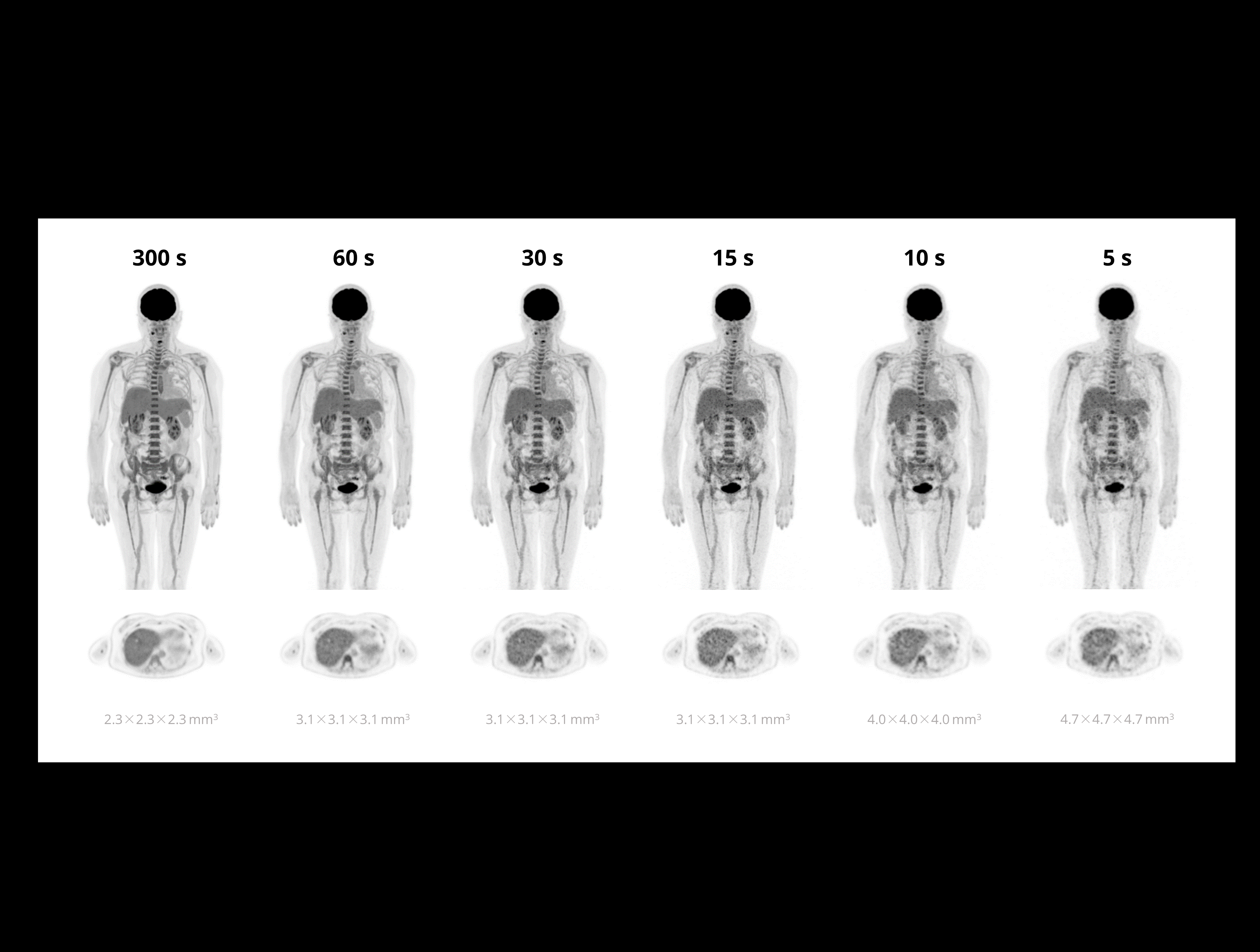

Single-Bed Whole-Body Imaging with Different Frame Durations

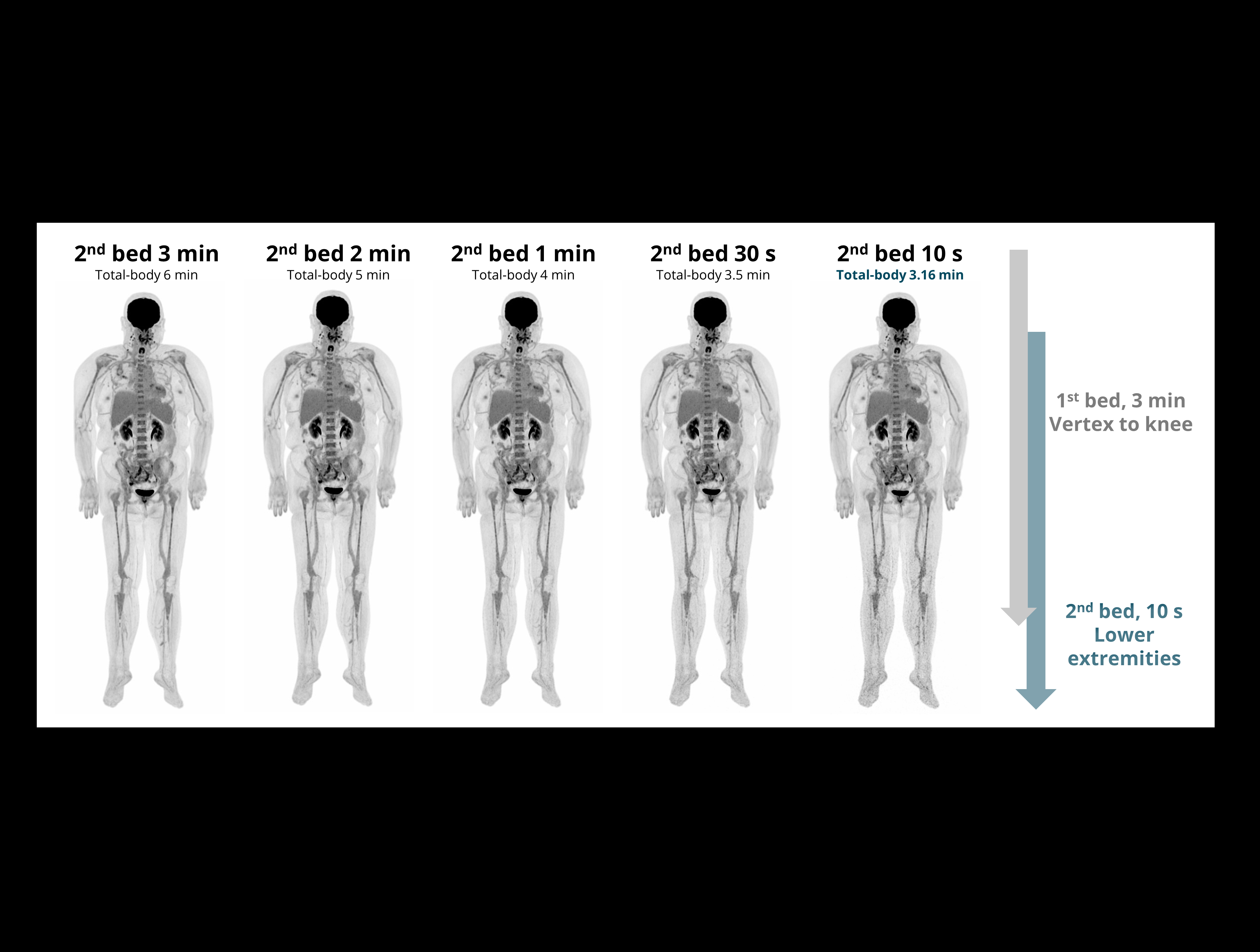

Flexible Total-Body Scanning Workflow

High Resolution Dynamic Imaging

Low-Dose High Resolution Dynamic Imaging

Low-Dose High-resolution Brain Imaging

Functional and Anatomical Information Provided by PET

Hold down the left mouse button and drag towards the right to see more cases.
Onscreen reproduction and display may result in a certain degree of image-quality degradation.
