Empowering Tomorrow for All

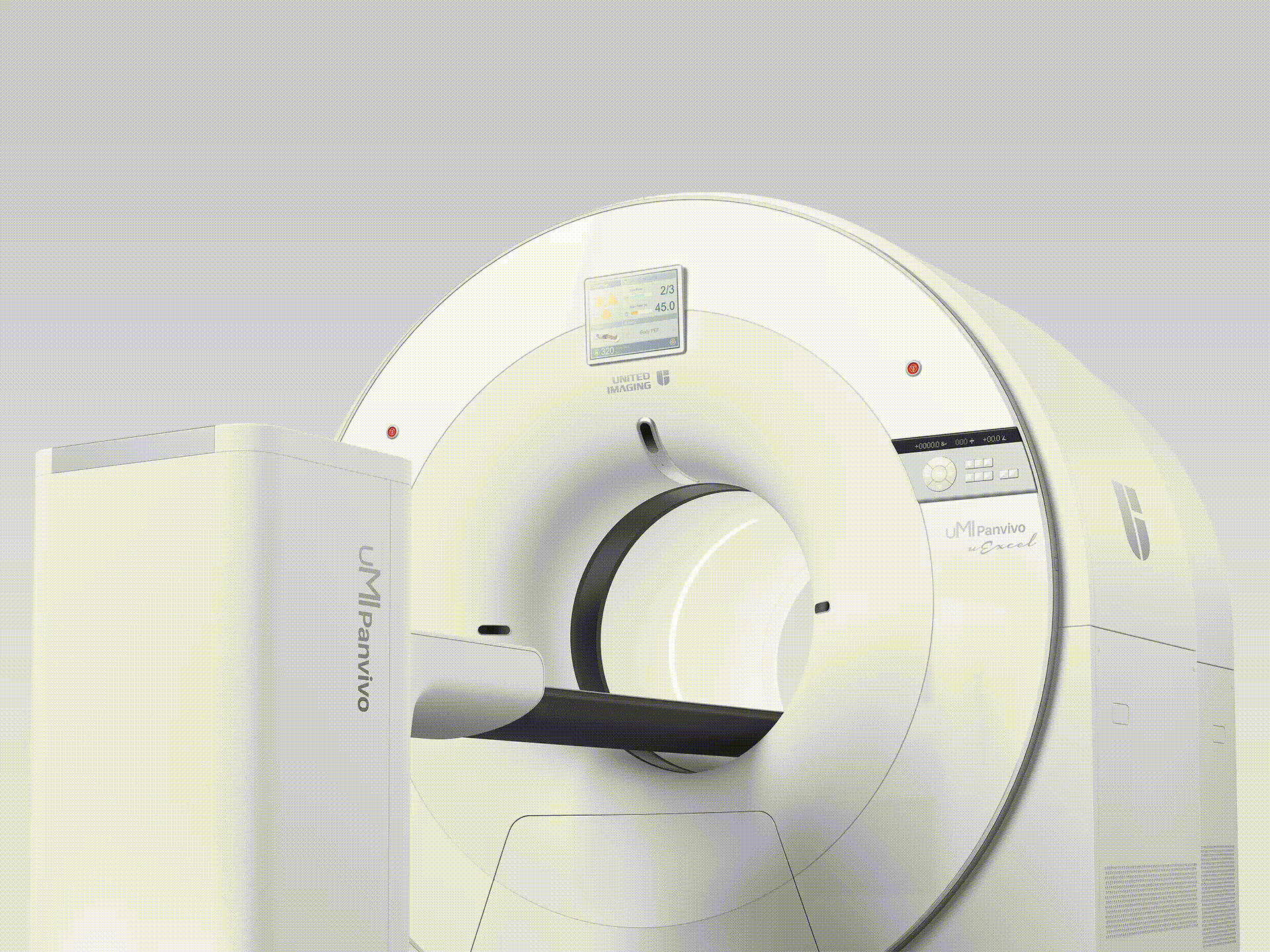

uMI Panvivo is a high performance PET/CT platform that moves state-of-the-art innovative advancement to clinical reality. It advances diagnostic precision with industry-leading NEMA spatial resolution of 2.9mm and time of fight (TOF) timing resolution of 219 picosecond (ps), while it's air-cooled compact design make it more accessible to all. The human-centric design and fully AI-empowered workflow of uMI Panvivo deliver care to every patient while keeping the user in mind. Built on its multiple AFOV platform, uMI Panvivo's powerful design builds the bridge toward long-term and sustainable success.

uMI Panvivo Family: A Multiple AFOV Platform

Based on modular detector architecture, uMI Panvivo Family offers a range of axial field-of-view (AFOV) options that meets your clinical demands with accessibility. The expanded coverage on multi-gantry design leverages higher sensitivity and scan efficiency that unlocks your clinical and research capabilities.

  • Modular PET AFOV with multiplied effective sensitivity
  • Modular design to fit existing installation environments
  • Air-cooling and no equipment room needed
  • Fully AI-empowered workflow for confident diagnosis and successful procedure

uMI Panvivo S

24 cm AFOV

uMI Panvivo

30 cm AFOV

uMI Panvivo ES

53 cm AFOV

uMI Panvivo EX

71 cm AFOV

uMI Panvivo LS2

107 cm AFOV

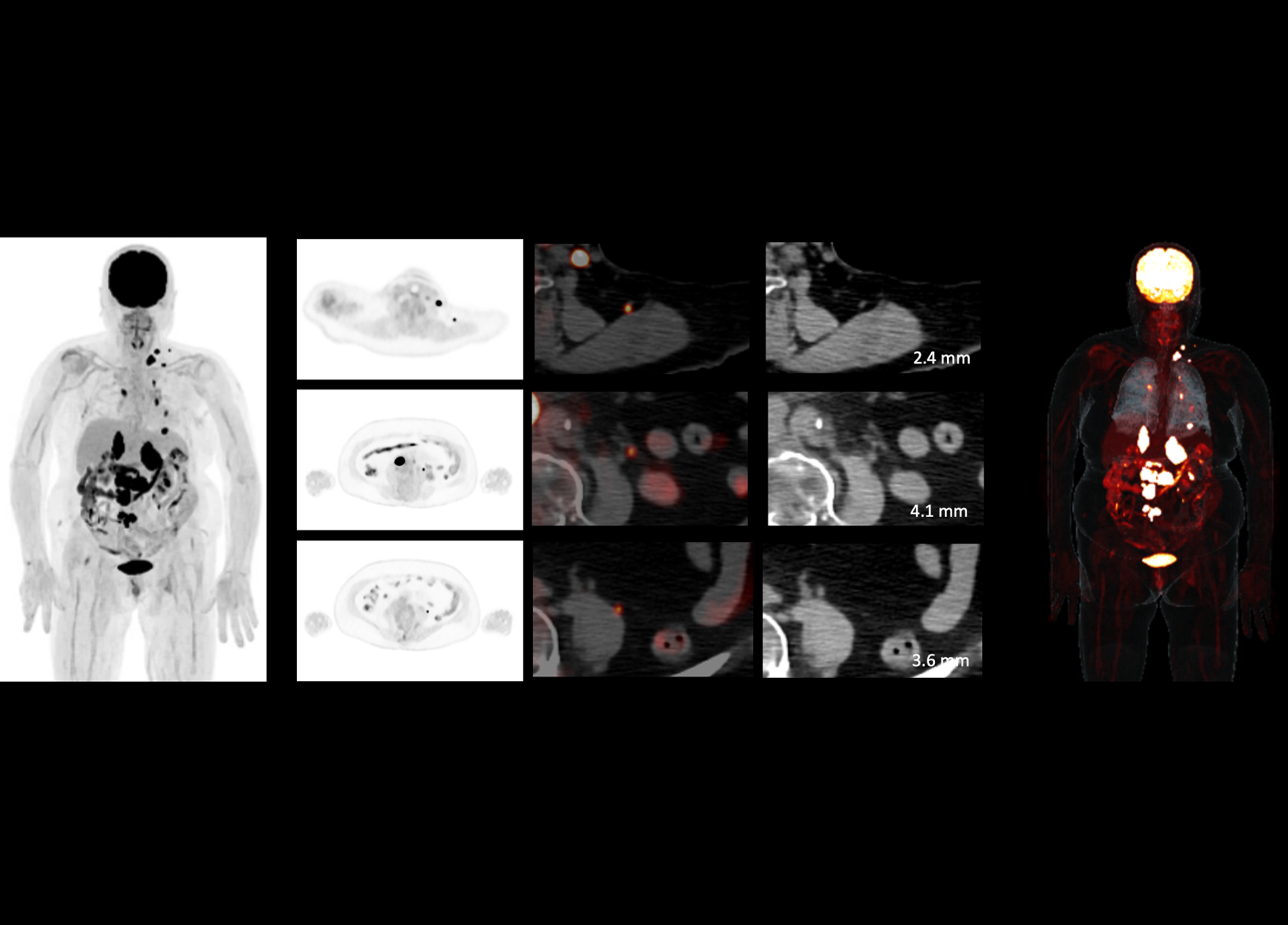

5 min Fast Whole-body Imaging with Clear Delineation of Small Lesions

2.9mm

NEMA Spatial Resolution

219 ps

TOF Resolution

117 cps/kBq

Effective Sensitivity ¹

Air-cooling

No Equipment Room Needed

4 cm

CT Axial Coverage with 80 Rows / 160 Slices

0.3 s

Rotation Time / 360°

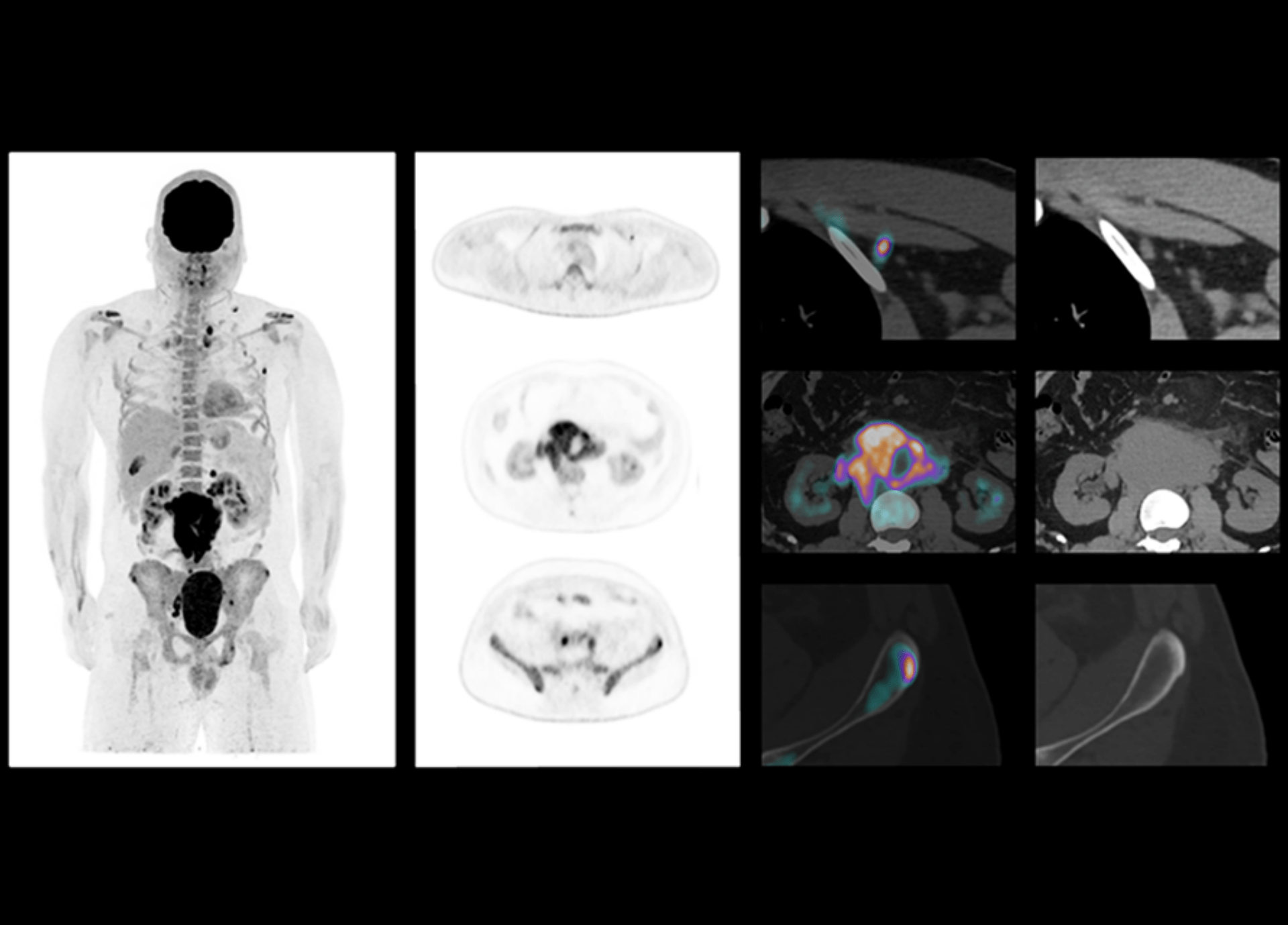

High Resolution PET/CT Imaging Enables Detecting Small Lesions

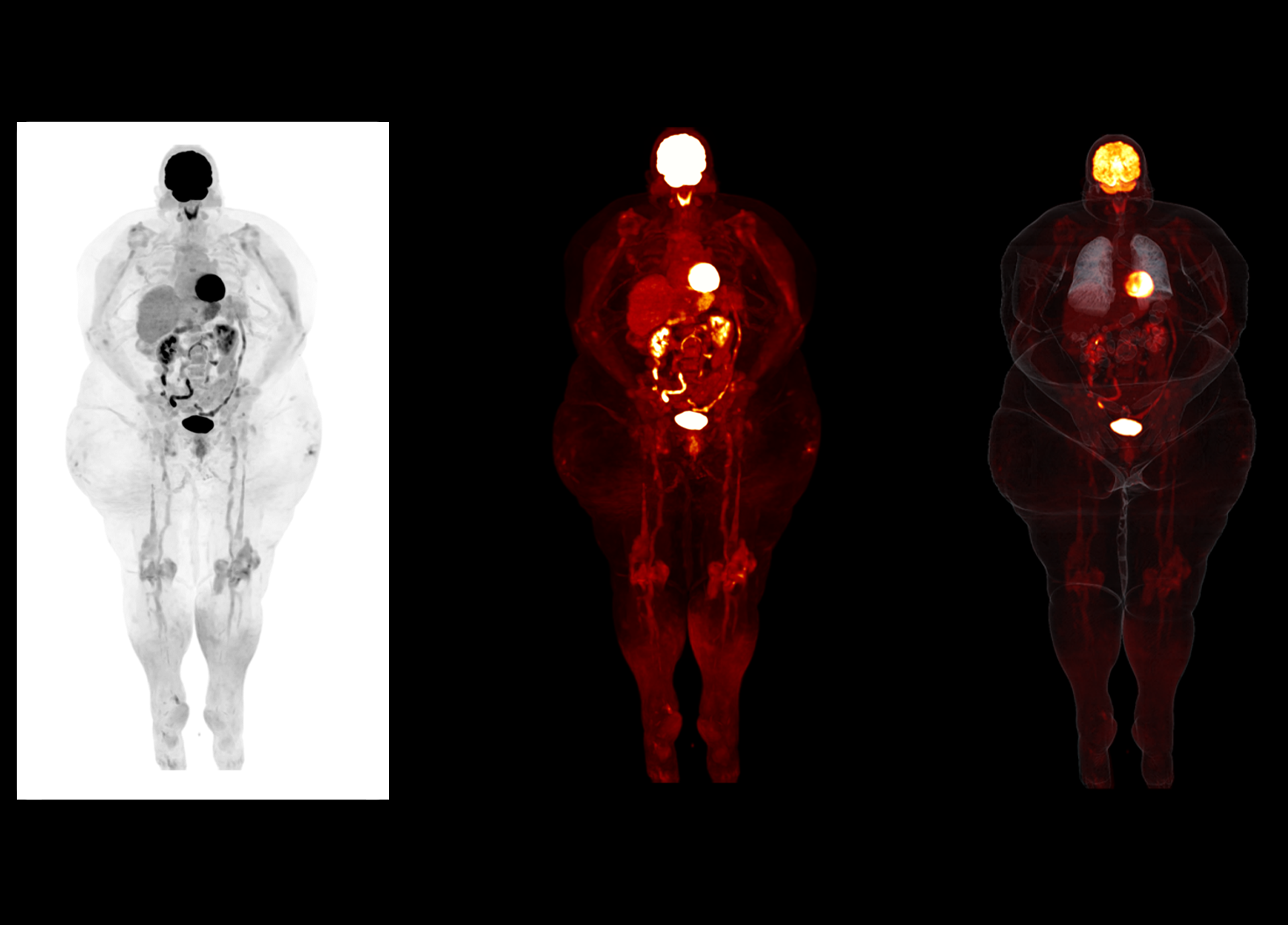

Half Dose Fast Total-body Imaging for a High BMI Patient

2.9mm

NEMA Spatial Resolution

219 ps

TOF Resolution

181 cps/kBq

Effective Sensitivity ¹

Air-cooling

No Equipment Room Needed

4 cm

CT Axial Coverage with 80 Rows / 160 Slices

0.3 s

Rotation Time / 360°

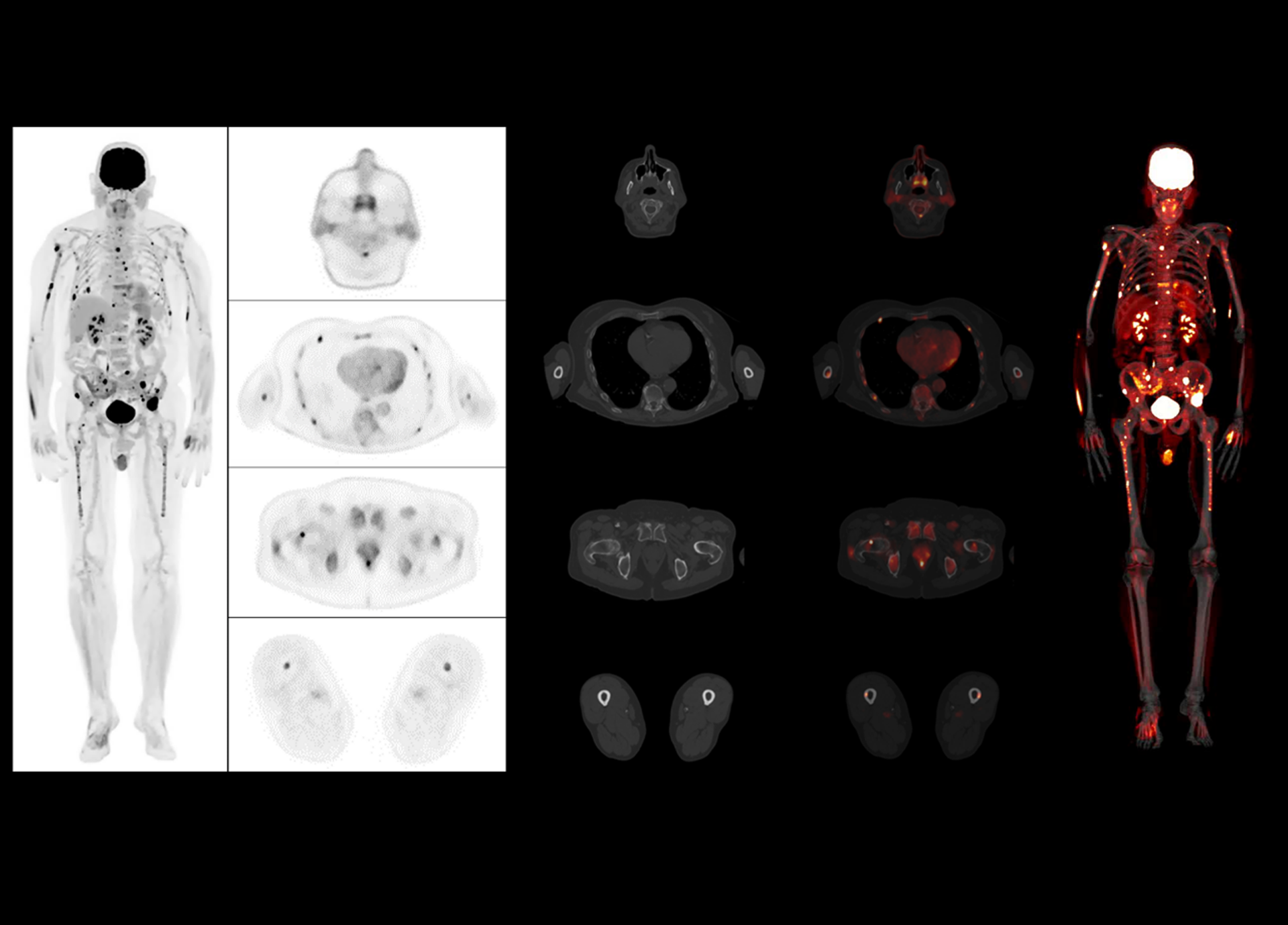

Clear Delineation of Lesions from Vertex to Toe in 4 min

Improving Small Lesion Detectability and Delineation with 219 ps TOF Resolution

2.9mm

NEMA Spatial Resolution

219 ps

TOF Resolution

543 cps/kBq

Effective Sensitivity ¹

Air-cooling

No Equipment Room Needed

4 cm

CT Axial Coverage with 80 Rows / 160 Slices

0.3 s

Rotation Time / 360°

High Resolution Brain Imaging positioned at edge of AFOV

3 min fast scan with low dose usage

2.9mm

NEMA Spatial Resolution

219 ps

TOF Resolution

938 cps/kBq

Effective Sensitivity ¹

Air-cooling

No Equipment Room Needed

4 cm

CT Axial Coverage with 80 Rows / 160 Slices

0.3 s

Rotation Time / 360°

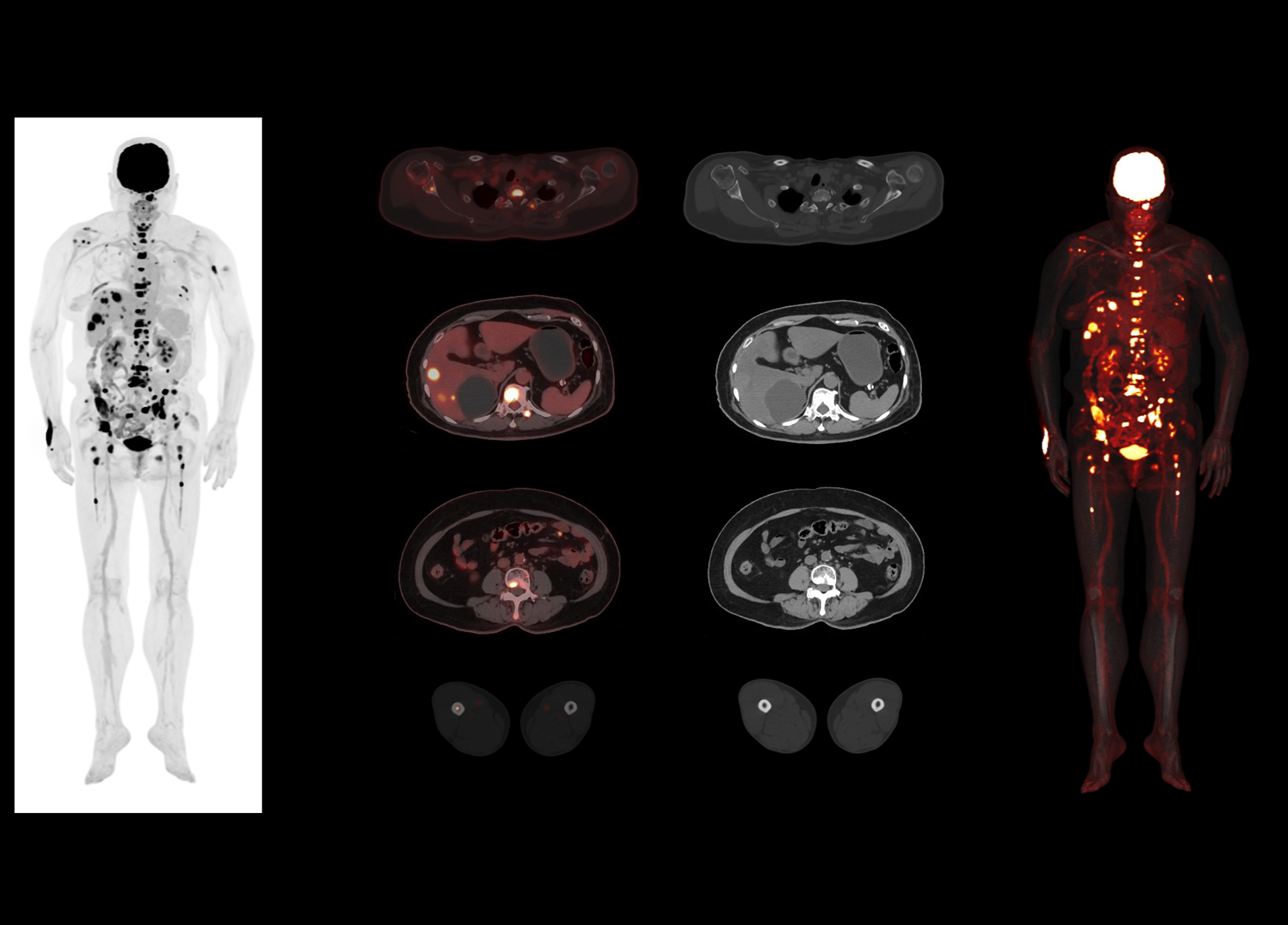

Dual-Tracer Scan of Patient with Multiple Myeloma

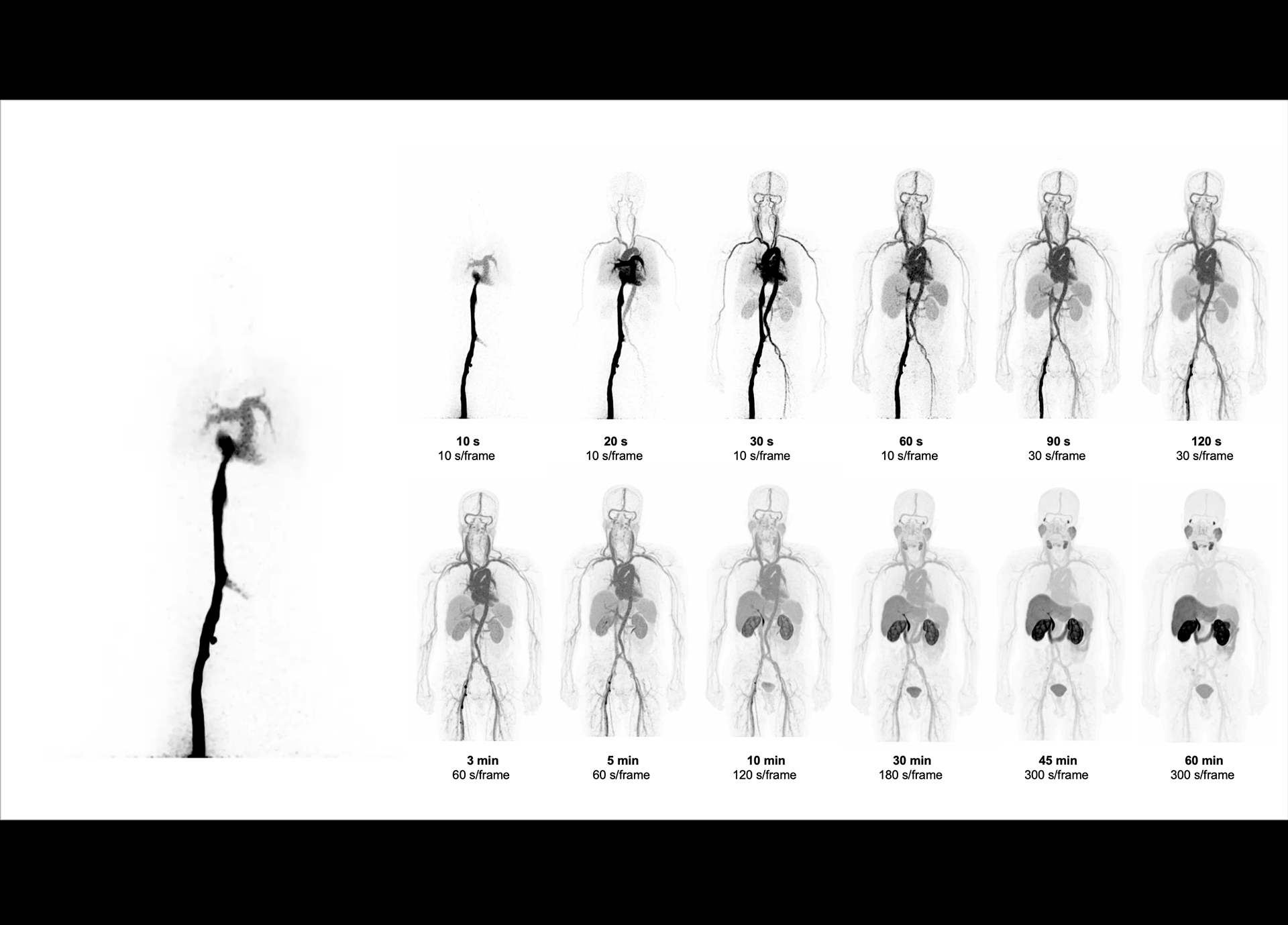

Whole-body Dynamic Imaging

2.9mm

NEMA Spatial Resolution

219 ps

TOF Resolution

1576 cps/kBq

Effective Sensitivity ¹

Air-cooling

No Equipment Room Needed

4 cm

CT Axial Coverage with 80 Rows / 160 Slices

0.3 s

Rotation Time / 360°

Precision for All

Driven by precision medicine and personalized care, uMI Panvivo offers the top-tier performance based on state-of-the-art detector technology and highly integrated system for better diagnostic confidence and capabilities.

Top-tier Performance

2.9 mm

Exceptional NEMA spatial resolution delivered by the finest crystal size of 2.76 mm in the industry.

219 ps

Leading TOF resolution that boosts small lesion detectability and clarity.

Multiple AFOV

Designed to support multiple AFOV for enhanced imaging capability and more clinical possibilities.

Up to 181 cps/kBq¹

High effective sensitivity that benefits from TOF gain leverages better diagnostic accuracy under low dose usage and fast scan time.

Uncompromised Clarity
  • Revealing the Fine Details
  • Clarity with Fast Scan and Low Dose
  • Clarity Enhanced by TOF resolution

High-definition (HD) resolution up to 1.6 mm

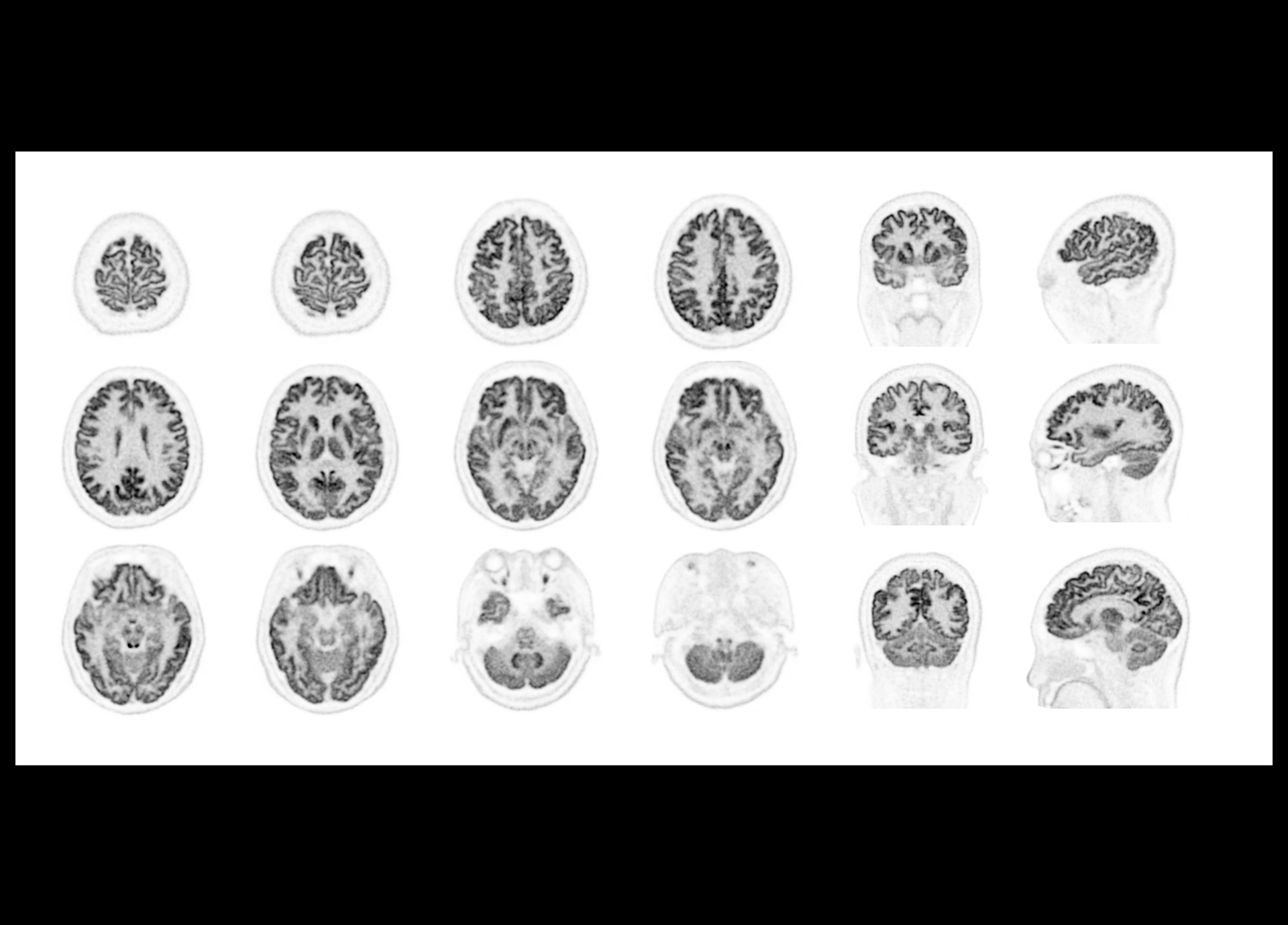

High resolution image of 18F-FDG brain PET/CT scan

10-min Total-body Imaging with Low Dose

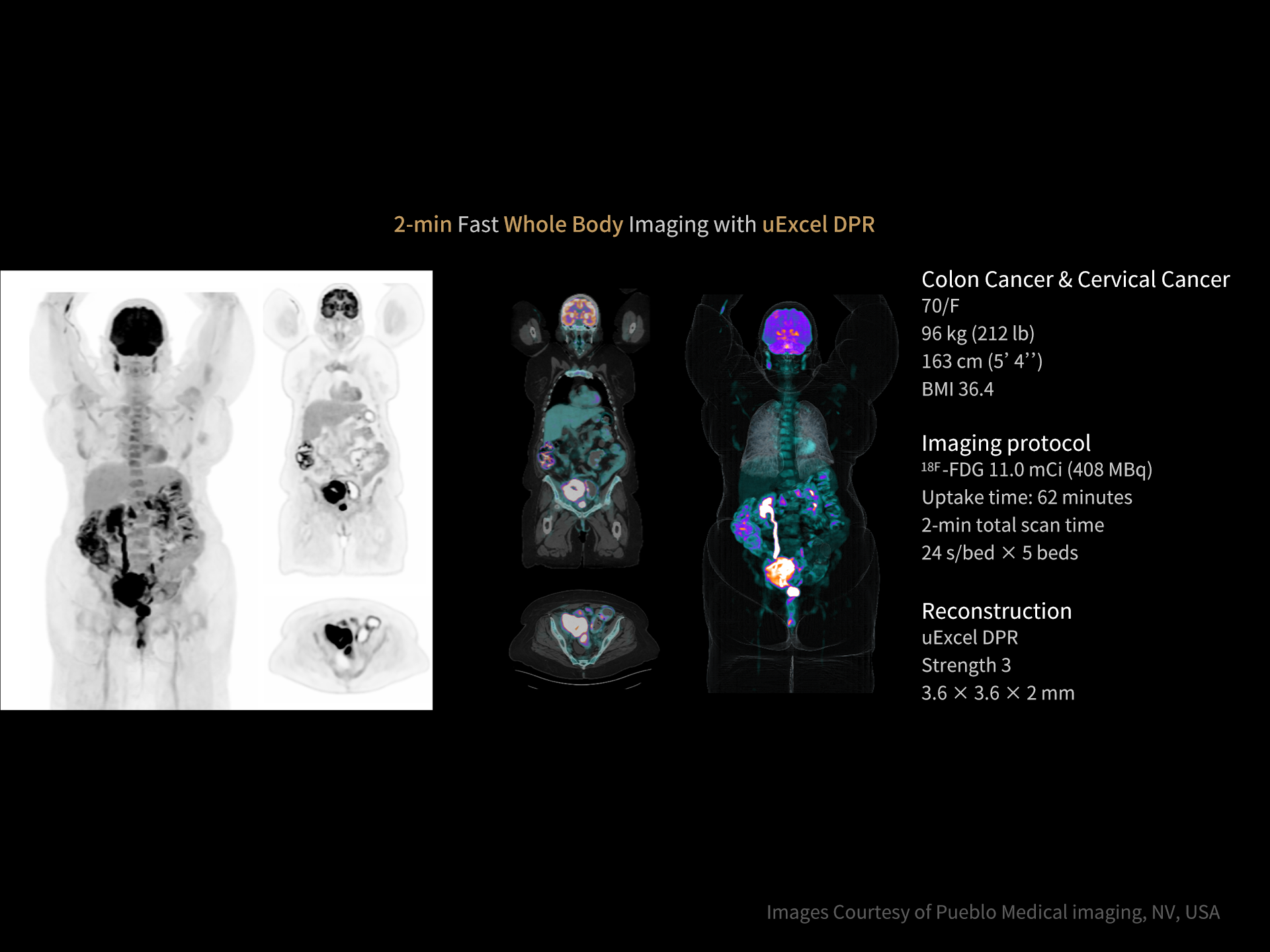

Fast Whole-body Imaging Down to 2-min

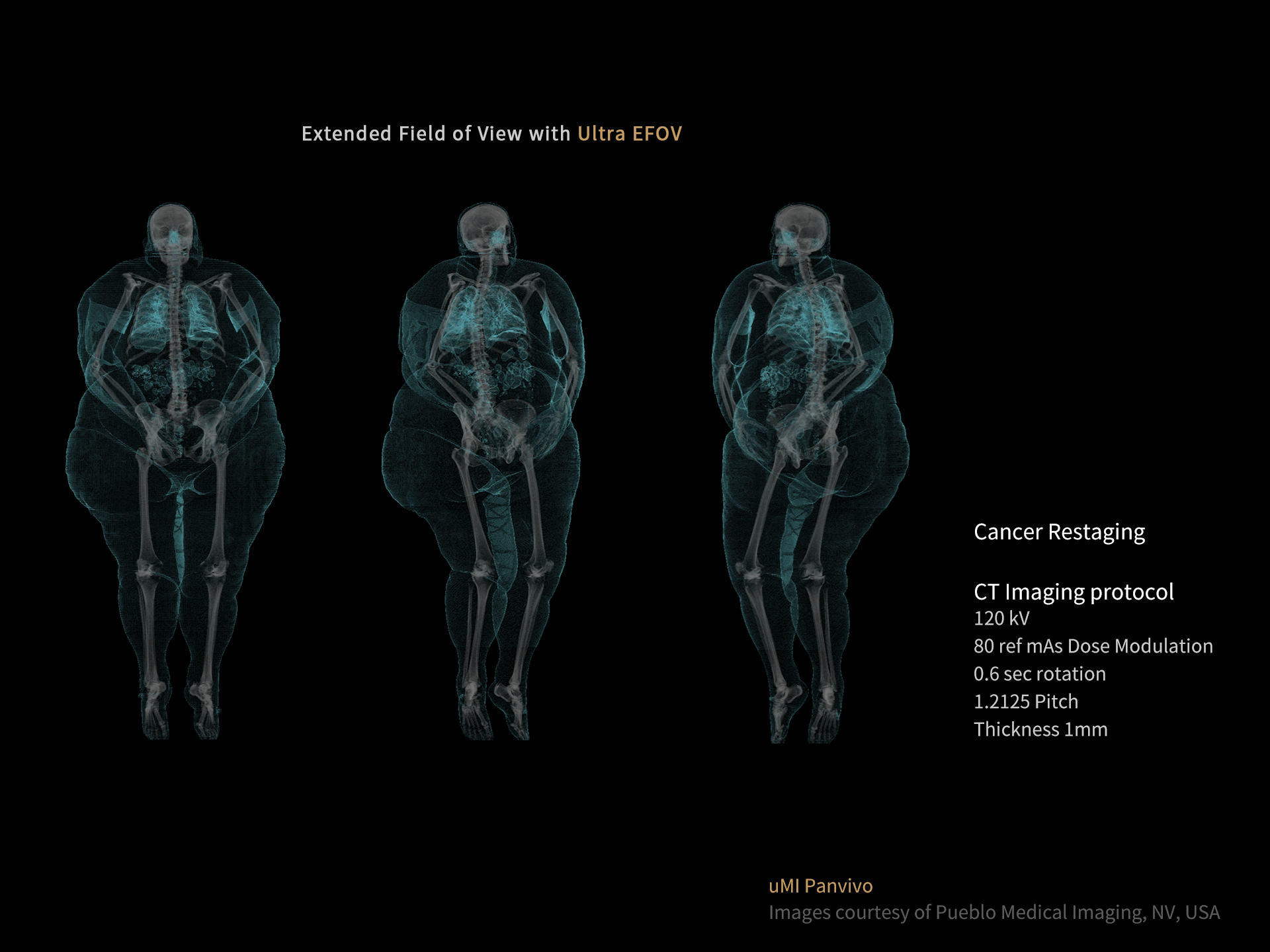

Low Dose Imaging of Large BMI Patient

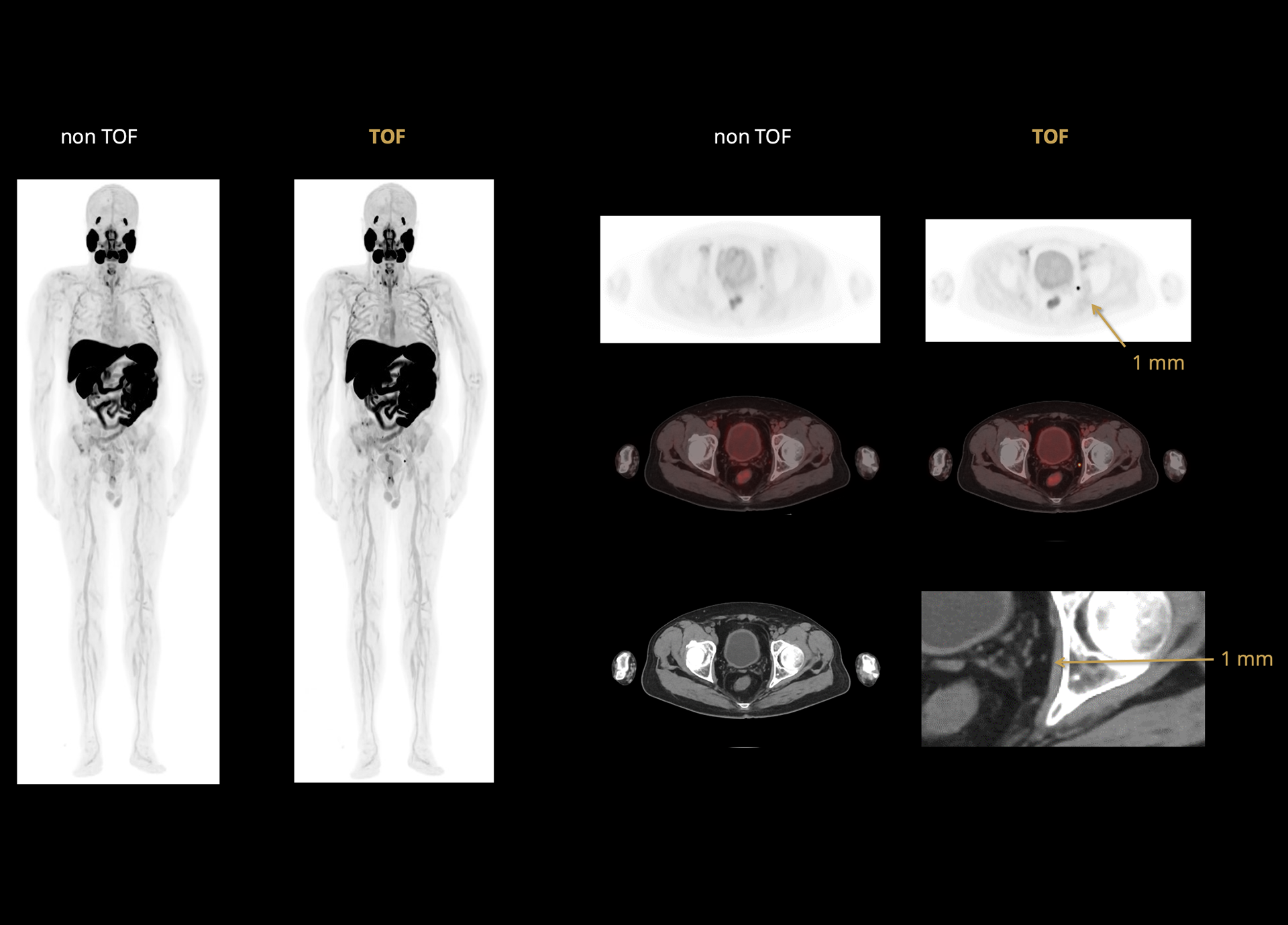

High TOF resolution of 219 ps enables better lesion detectability and quantitative accuracy

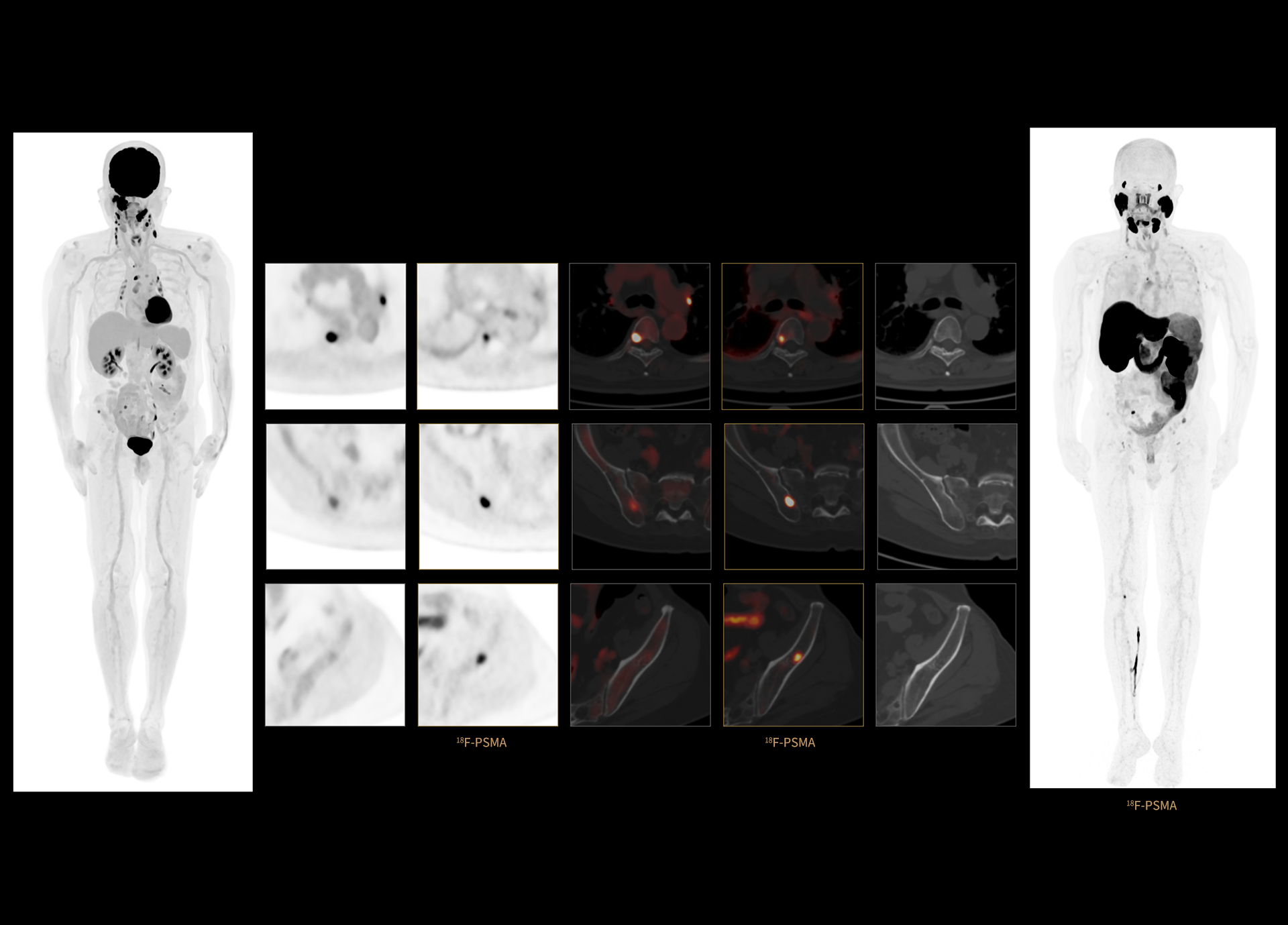

Clear Visualization of lesion in 68Ga-PSMA imaging

Care for All

uMI Panvivo represents the very idea of care for all through incorporating patient-centric design and embracing power of Artificial Intelligence to enhance patient and user experience, and overall efficiency.

AI-Powered Intuitive Workflow with uExcel

A successful PET/CT exam requires a system that offers ease of operation with accuracy. uVision, an AI-powered technology, navigates the system to deliver a streamlined procedure with patient modeling, auto notification and isocenter positioning, improving the usability and workflow efficiency.

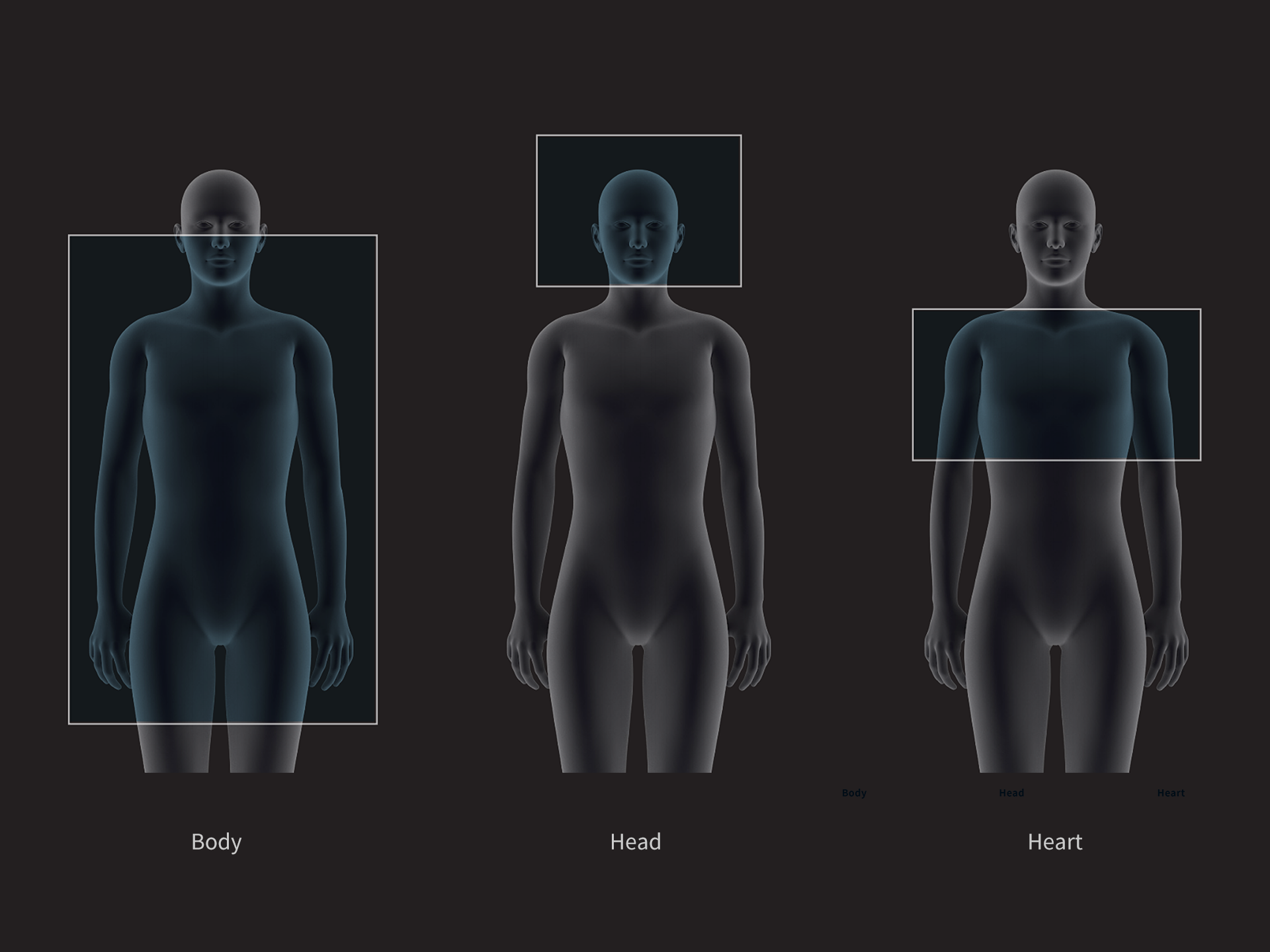

EasyRange (Auto Planbox) automatically sets the scan range for targeted areas like the body, head, and heart, etc. according to the protocol selected, reducing the effort of manual selection and adjustment.

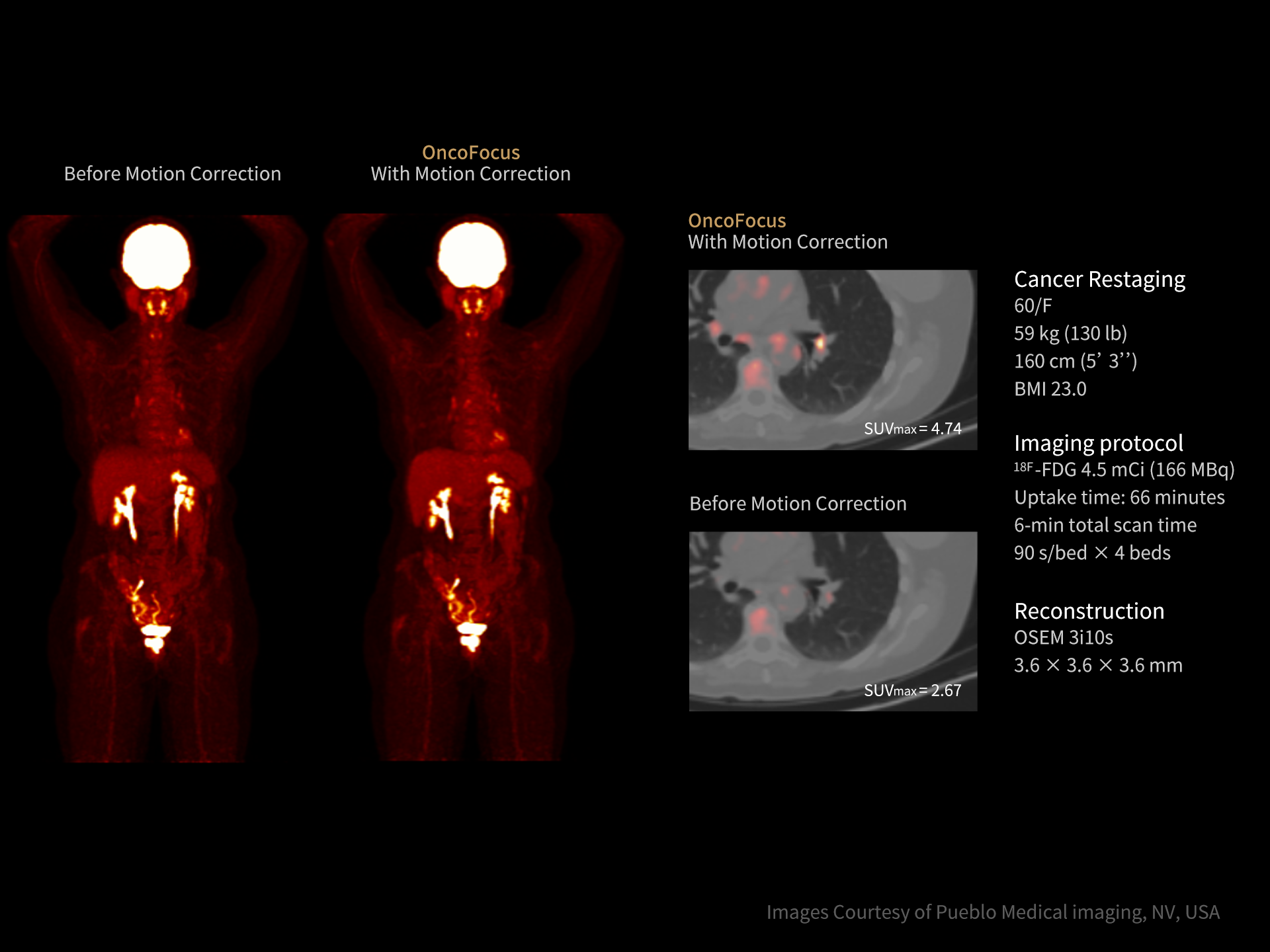

uMI Panvivo's AI-powered OncoFocus provides a unified solution to reduce respiratory motion artifacts, ensuring accurate quantification and precise lesion measurements for more confident decision-making.

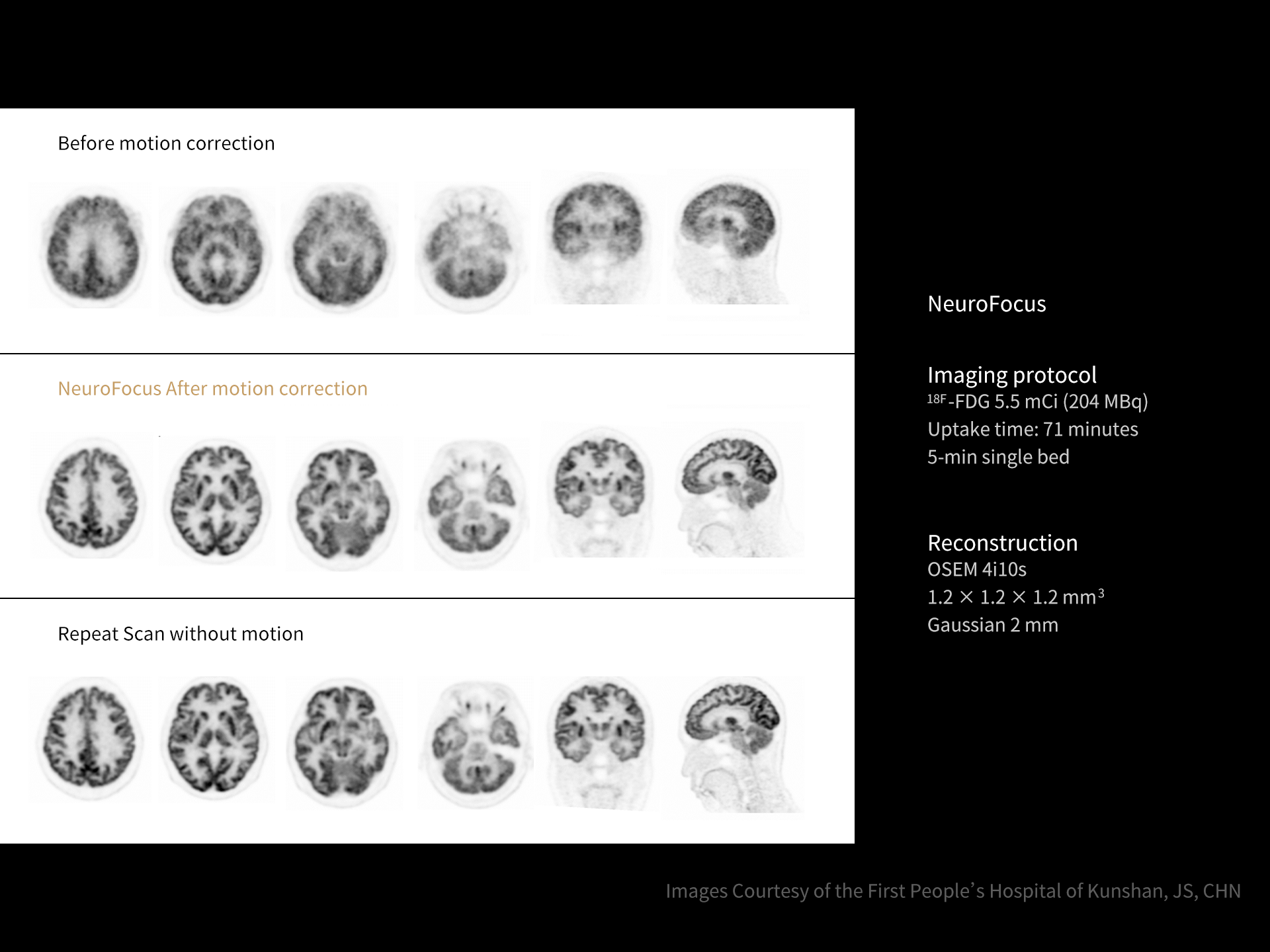

NeuroFocus is a groundbreaking solution that corrects head motion artifacts without additional motion tracking devices to improve your diagnostic confidence and efficiency.

uExcel DPR (Deep Progression Reconstruction) represents a breakthrough in PET imaging reconstruction method, leveraging advanced AI-driven iterative reconstruction to significantly reduce noise and enhance image contrast.

uExcel uVision

A successful PET/CT exam requires a system that offers ease of operation with accuracy. uVision, an AI-powered technology, navigates the system to deliver a streamlined procedure with patient modeling, auto notification and isocenter positioning, improving the usability and workflow efficiency.

EasyRange

EasyRange (Auto Planbox) automatically sets the scan range for targeted areas like the body, head, and heart, etc. according to the protocol selected, reducing the effort of manual selection and adjustment.

uExcel OncoFocus²

uMI Panvivo's AI-powered OncoFocus provides a unified solution to reduce respiratory motion artifacts, ensuring accurate quantification and precise lesion measurements for more confident decision-making.

uExcel NeuroFocus²

NeuroFocus is a groundbreaking solution that corrects head motion artifacts without additional motion tracking devices to improve your diagnostic confidence and efficiency.

uExcel DPR²

uExcel DPR (Deep Progression Reconstruction) represents a breakthrough in PET imaging reconstruction method, leveraging advanced AI-driven iterative reconstruction to significantly reduce noise and enhance image contrast.

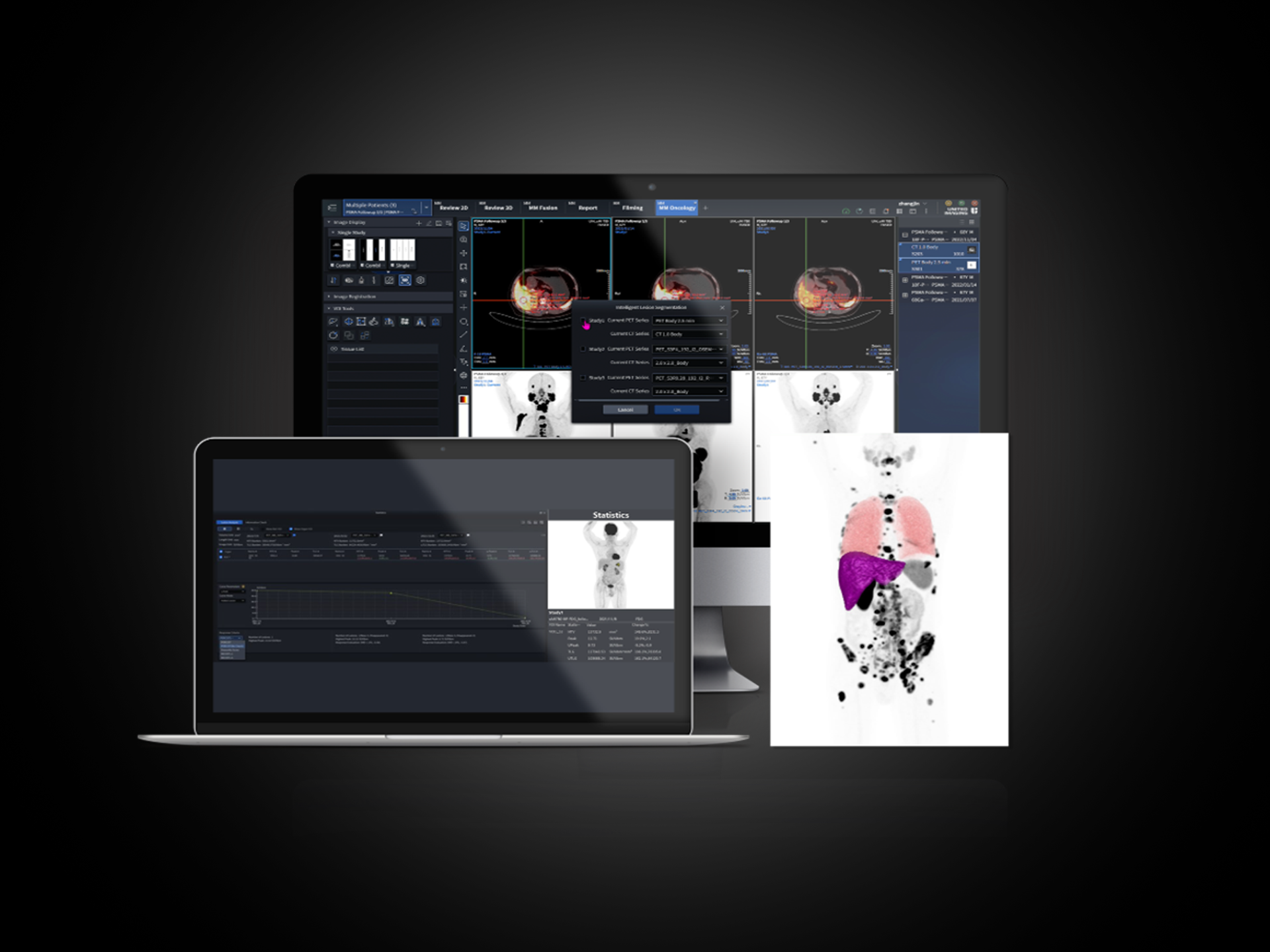

AI-Powered Post-Processing Solution with uOmnispace

Scalable modality or departmental, enterprise solution that adapts to your clinical and IT needs.

Driving intelligent insights, precision evaluation in oncology and personalized theranostics with auto segmentation, reading and reporting²

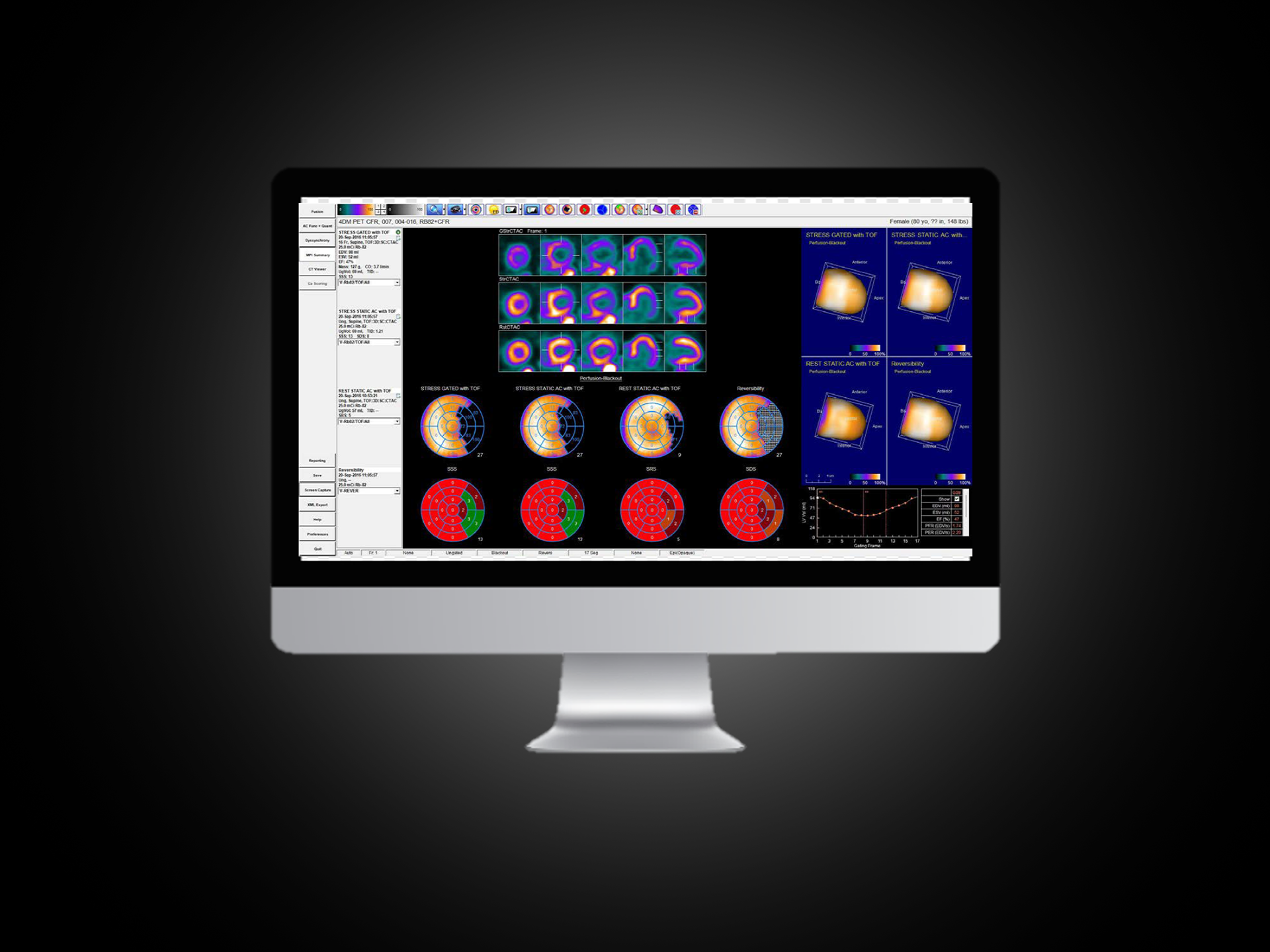

Comprehensive cardiac quantification package for cardiac perfusion, function, and viability

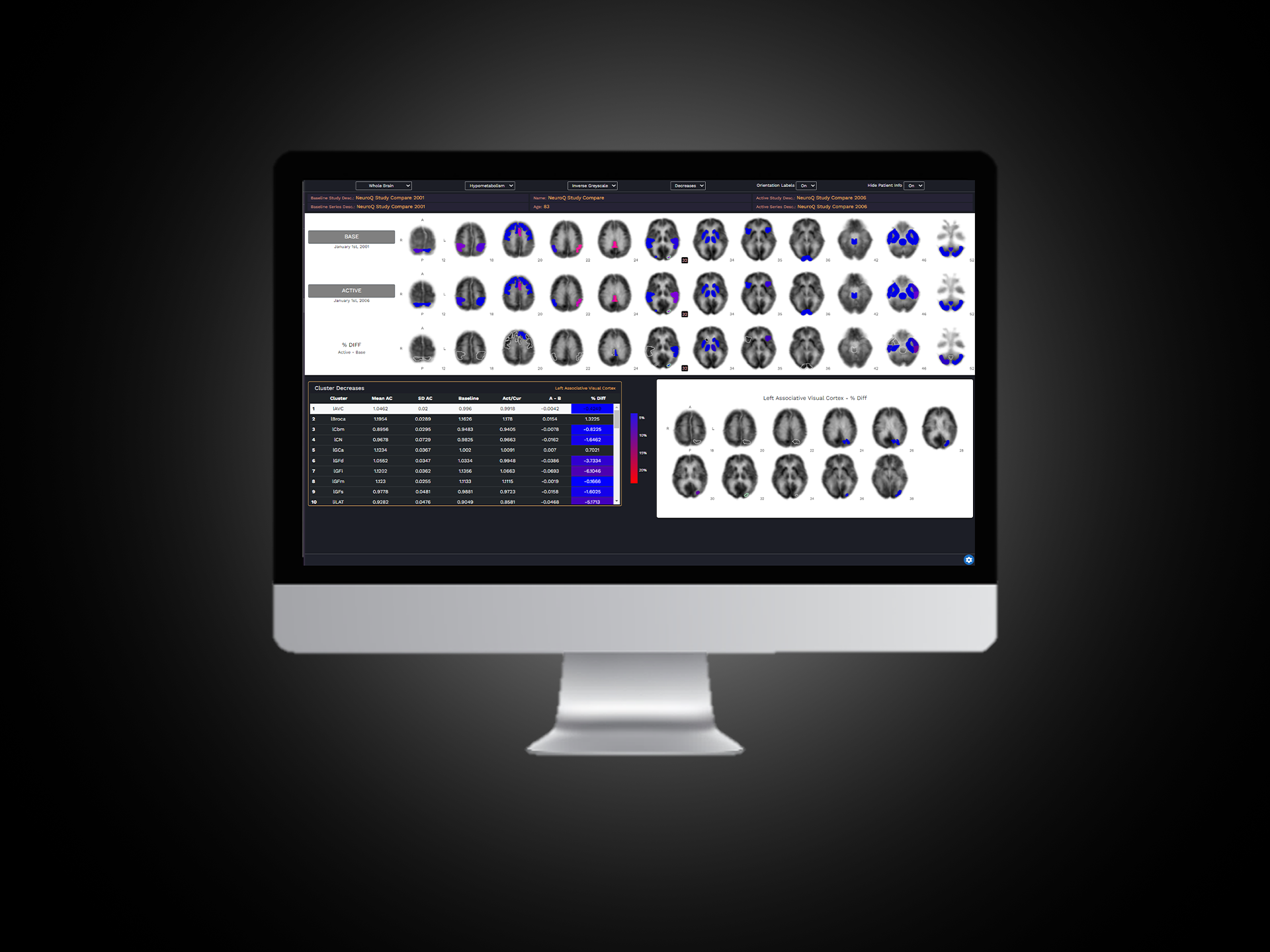

Comprehensive brain quantification tools for neurodegenerative disease

Easy access, scalable, and multi-vendor

Scalable modality or departmental, enterprise solution that adapts to your clinical and IT needs.

Enjoyable Scan Experience with Human-centric Design

uMI Panvivo provides maximum tunnel clearance up to 59cm at the lowest table height, creating spacious room for larger patients and various accessories or postures.

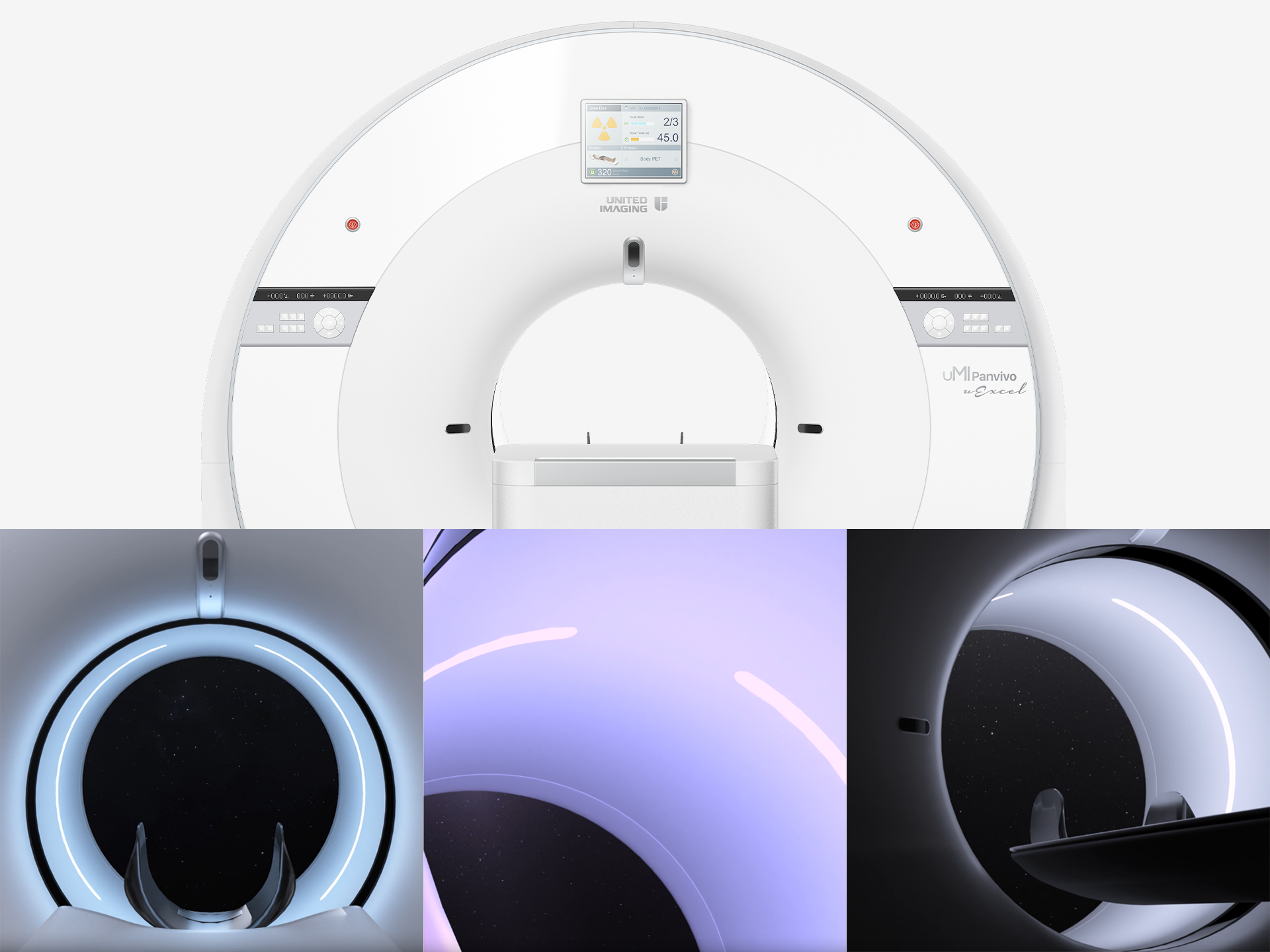

Purple, blue and white ambient lighting with breathing guide helps reduce patient anxiety and claustrophobia.

The column will stop moving automatically if the feet or other objects are detected near or below the base to prevent any trapping or stuck.

Bigger tunnel clearance

uMI Panvivo provides maximum tunnel clearance up to 59cm at the lowest table height, creating spacious room for larger patients and various accessories or postures.

Soothing Ambient Lighting

Purple, blue and white ambient lighting with breathing guide helps reduce patient anxiety and claustrophobia.

Anti-collision Design

The column will stop moving automatically if the feet or other objects are detected near or below the base to prevent any trapping or stuck.

Success for All

uMI Panvivo aims to accompany you on the journey towards long-term and sustainable success.

Expanding Clinical Versatility

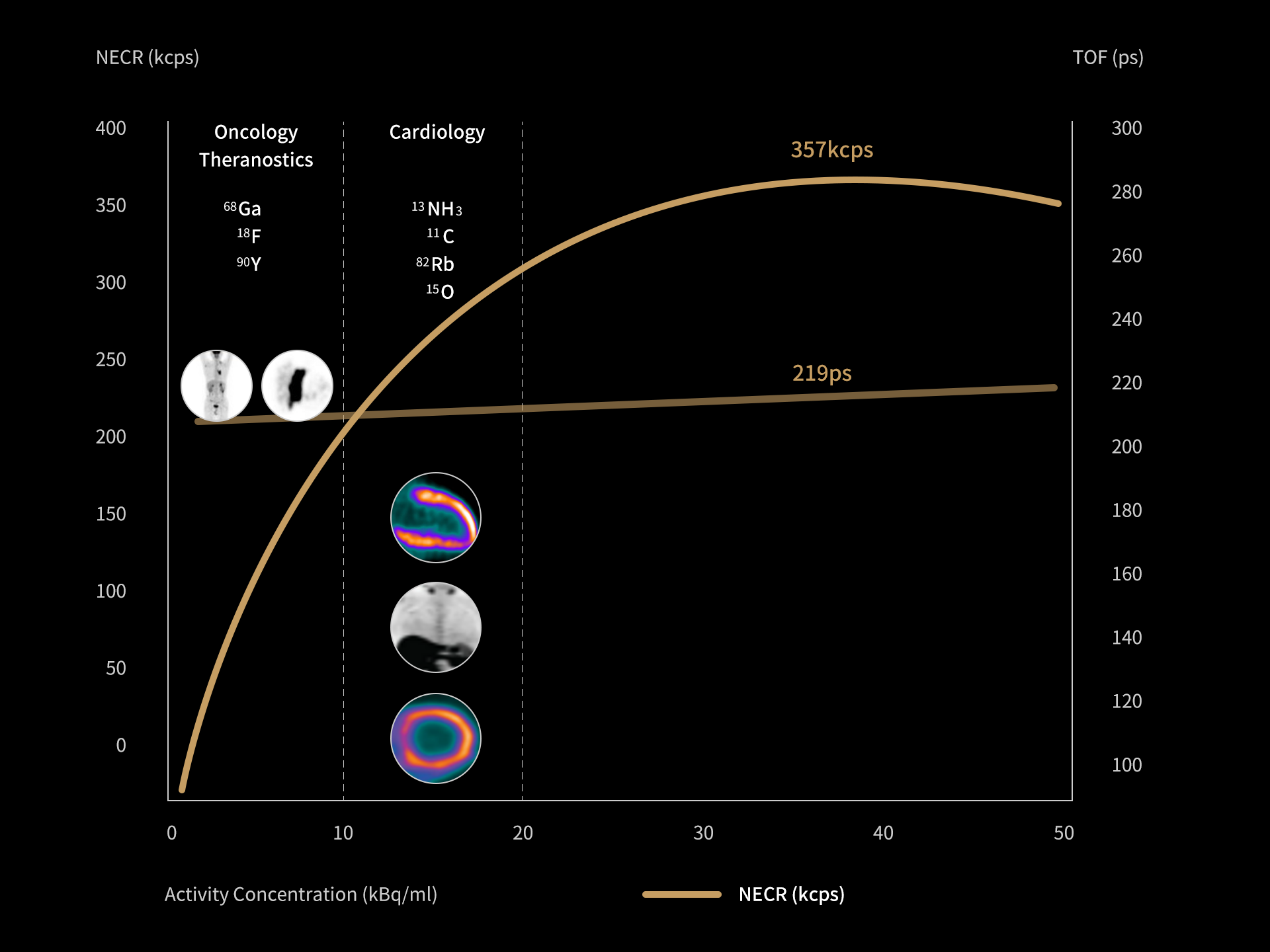

High NECR performance supports precision imaging in various clinical fields

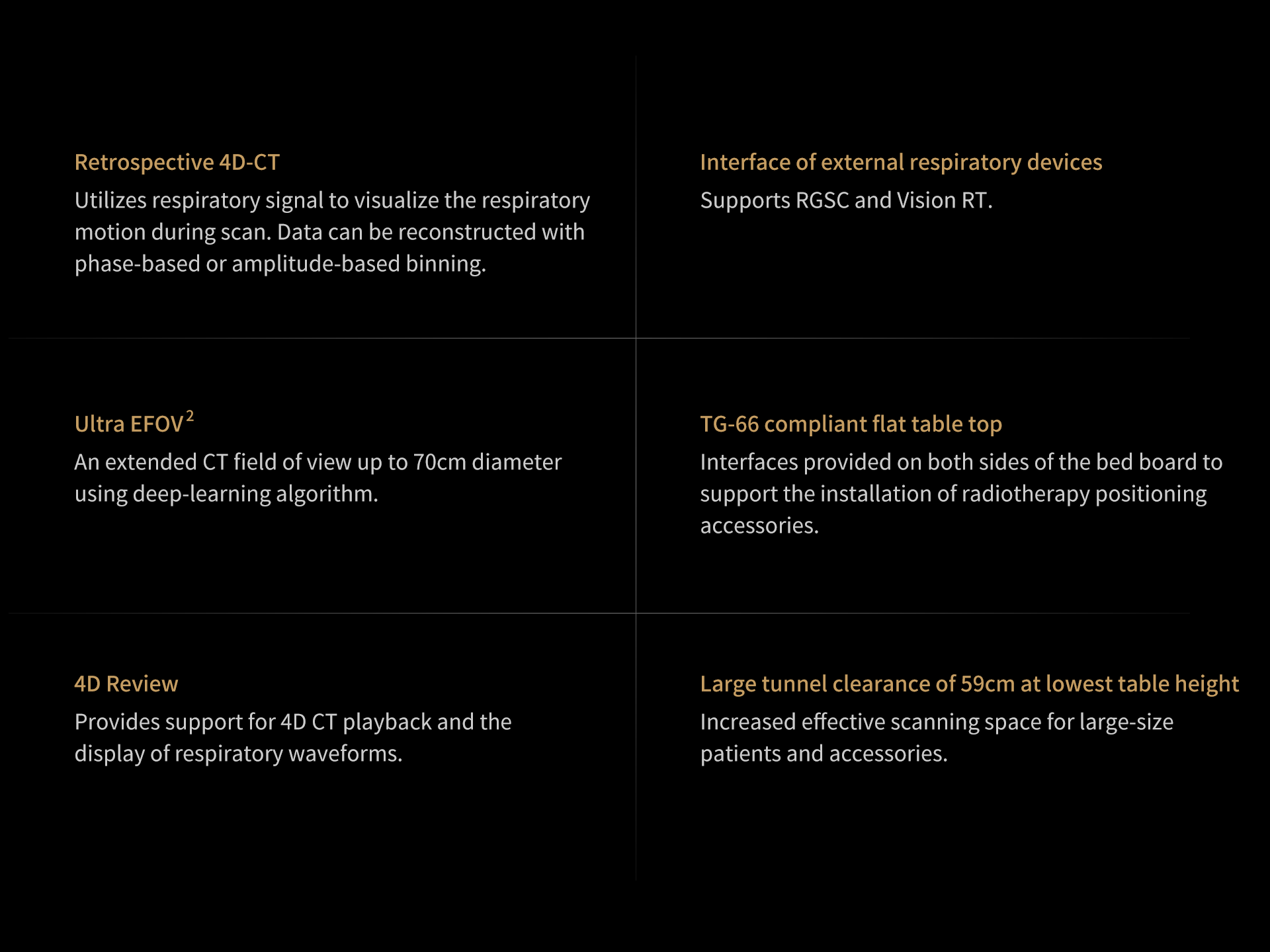

The integrated features that extend clinical use beyond imaging and diagnosis

Build Tomorrow with Adaptive Design





Improved Accessibility Delivered by A Compact Structure





Long-term Success with Consistency in Performance





Future-ready Design Built on A Multi-AFOV Platform

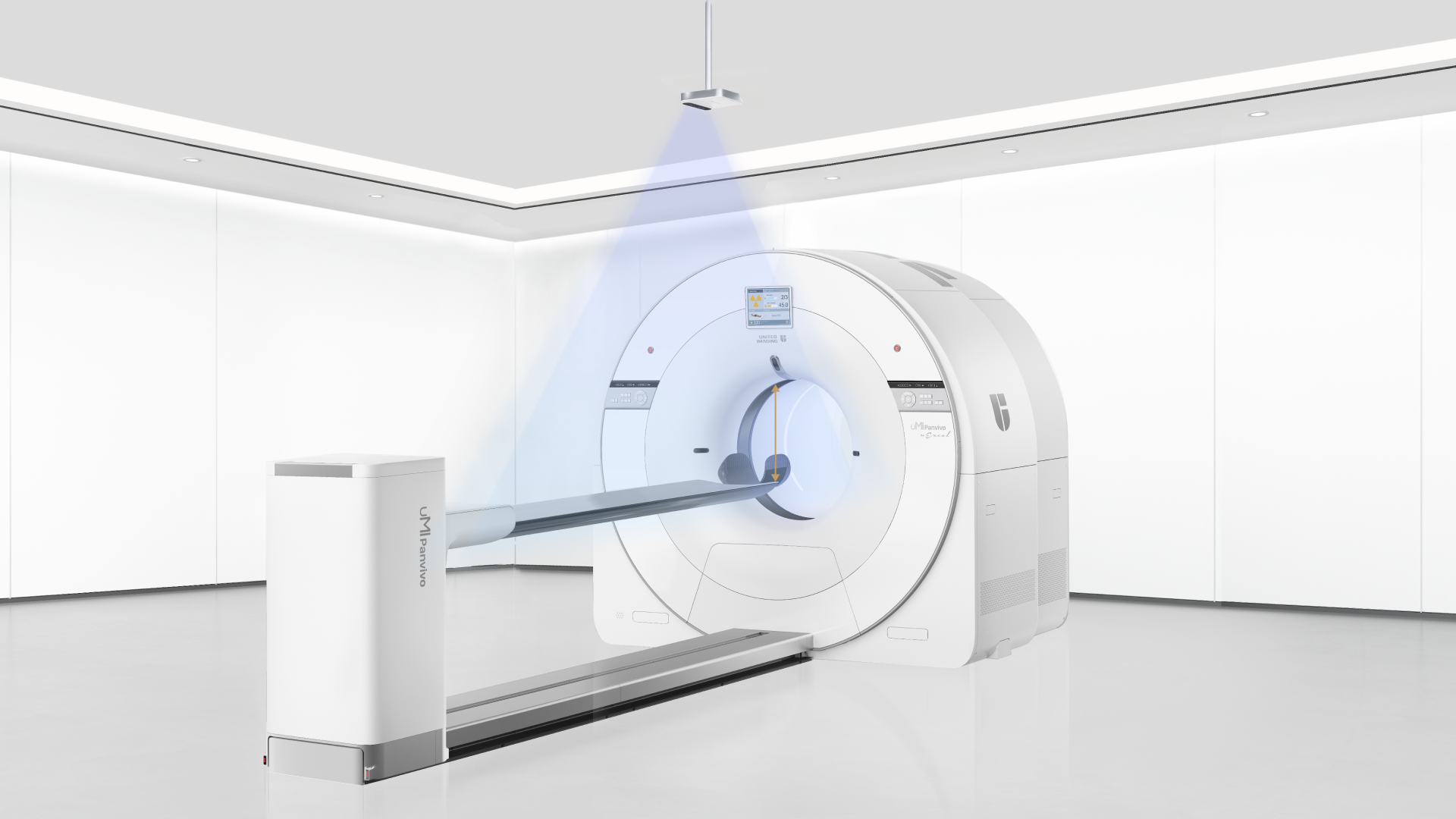

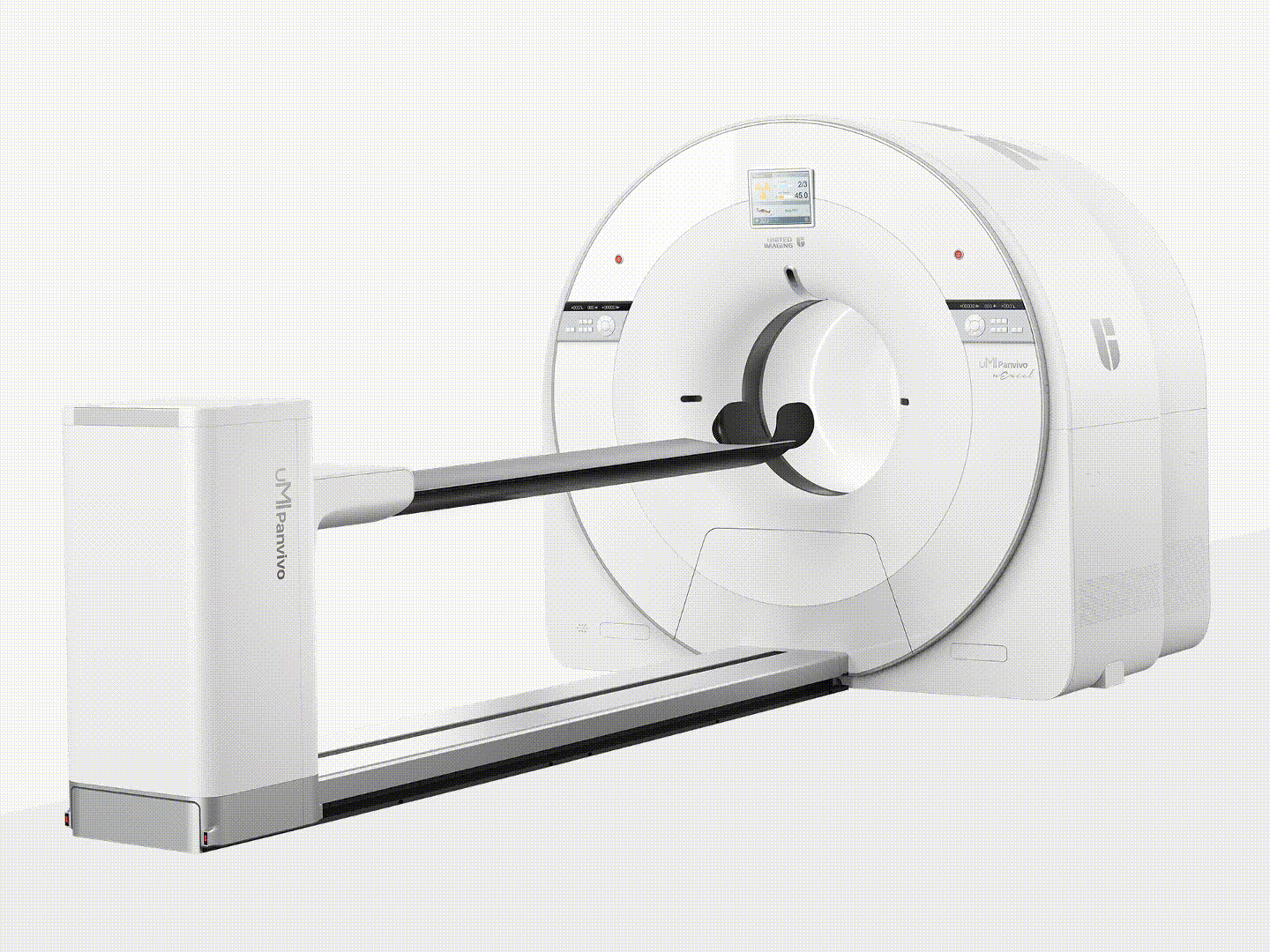

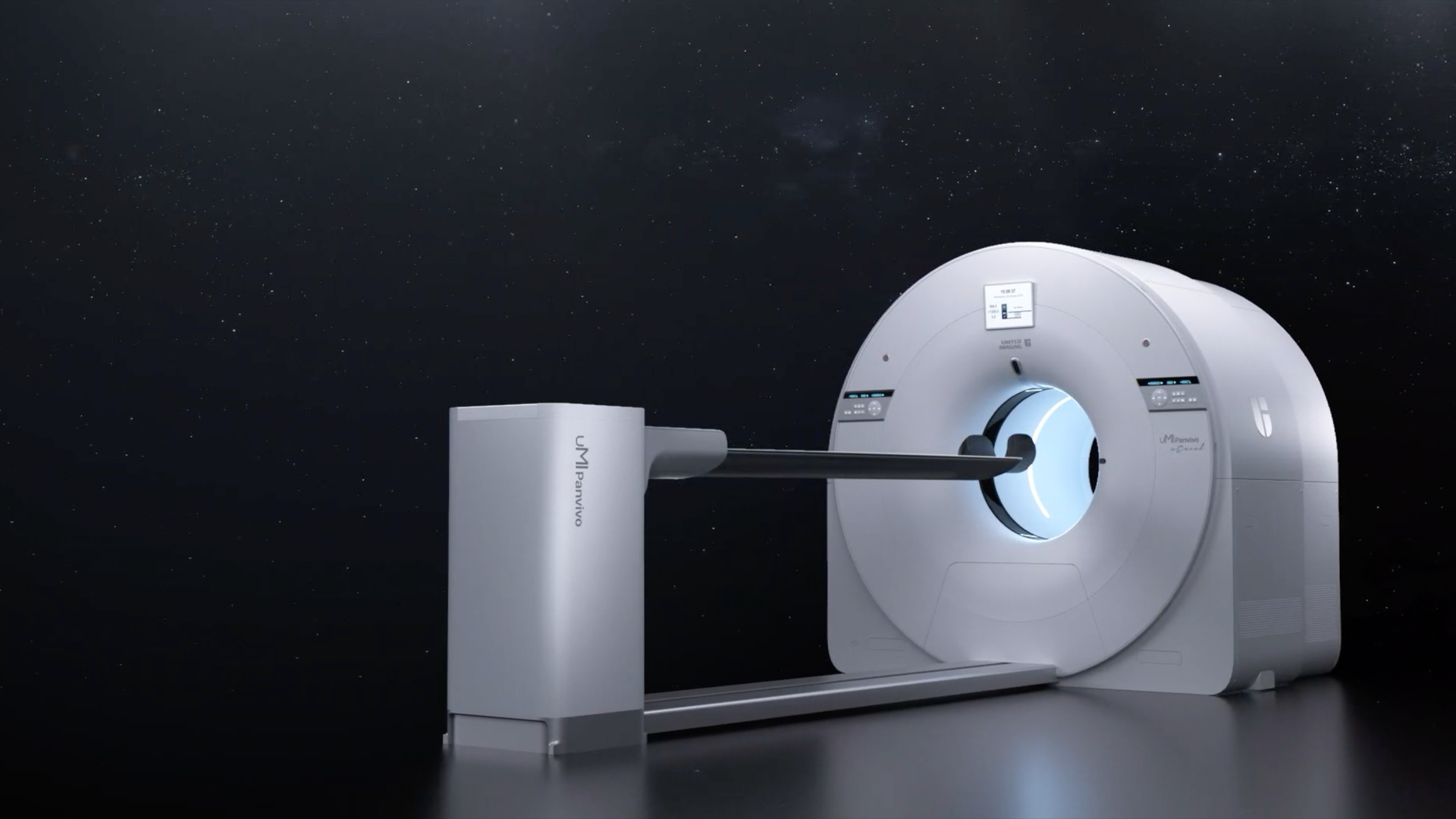

uMI Panvivo

uMI Panvivo is a powerful platform that enables diagnostic confidence, operational excellence with exceptional imaging capability, AI-powered workflow and compact and multiple AFOV design.

0.3 s Rotation Speed

Reduce total acquisition and breath hold times.

100 kW Generator

Provide high power output and reliable performance.

250 kg (551 lbs) Weight Capacity with Anti-collision Mechanism

To ensure a safer procedure, the column will stop automatically once an object or foot being detected under the base.

4 cm CT Detector Coverage

0.5 mm × 80 rows with 3D collimator grid up to 160 slices/rotation.

AI-assisted Patient Positioning

uExcel uVision, an AI-powered workflow that delivers the patient to the isocenter automatically and accurately based on the targeted region identified by the 3D camera in accordance with protocol.

Air-cooled System

Offer great performance stability without water chiller therefore no equipment room needed.

Multiple PET Axial FOV

30cm, 24cm and more PET Axial Field of Views (FOV) that suit your clinical needs and future development.

Extra Big Tunnel Clearance of
59 cm (23.2 in)

Create spacious room for larger patients and various accessories or postures.

Leading Performance with
multiple PET AFOV
2.9 mm

NEMA Spatial Resolution

219 ps

TOF Resolution

Up to 181 cps/kBq¹

Effective Sensitivity

Max. 2 m (78.7 in) Co-Scan Range

Allow efficient and comprehensive coverage for total-body imaging.

Technical Details
  • Gantry
  • PET
  • CT
Gantry



Aperture

70 cm（27.56 inch）

Weight Capacity

250 kg (551 lbs)

Cooling Method

Air cooling

System Control

DDP + CPAN

Remote Audio System

Yes

Light Environment

Purple, blue and white light with respiratory guide
PET



Crystal Material

LYSO

Crystal Size

2.76 mm × 2.76 mm

Spatial Resolution @1 cm

2.9 mm

TOF

219 ps

Scalable AFOV4

30 cm, ...

Effective Sensitivity @ 35 cm phantom1

up to 181 cps/kBq
CT



Axial Coverage

4 cm

Maximum Rotation Speed

0.3 s

Number of Detector Rows

80

Maximum Slices per Rotation

160

Equivalent Tube Anode Storage Capacity

7.5 MHU

kV Settings

70 kV, 80 kV, 100 kV, 120 kV, 140 kV

Range of Tube Current

6-833 mA (with 1 mA increment)

DISCLAIMERS

1 Data calculated with 35-cm object size.
2 Work in progress. Not commercially available in all countries. Future availability cannot be guaranteed.
3 Earl: EANM Research Ltd.
4 uMI Panvivo 30 cm. uMI Panvivo 30 cm is CE MDR cleared.

United Imaging does not make any claims regarding the safety and effectiveness of tracers that have not been approved by the FDA or CE.
Onscreen reproduction and display may result in a certain degree of image-quality degradation.
